Home Mini DV Camera SQ11

How To SetUp SQ11 Mini DV Camera (Ultimate Manual)

September 6, 2023
in SQ11
3
Share on FacebookShare on Twitter
How To SetUp SQ11 Mini DV Camera (Ultimate Manual)
Contents hide
SQ11 Button Description
Charging
SQ11 Recording Settings
720P Recording Mode
1080P Recording Mode
Motion Detection Recording Mode
720P Motion Detection Recording
1080P Motion Detection Recording
Photo Mode
Night vision switch
Start night vision
Switch off night vision
Reset the SQ11 Camera
Switch off the SQ11 camera
Time Setting

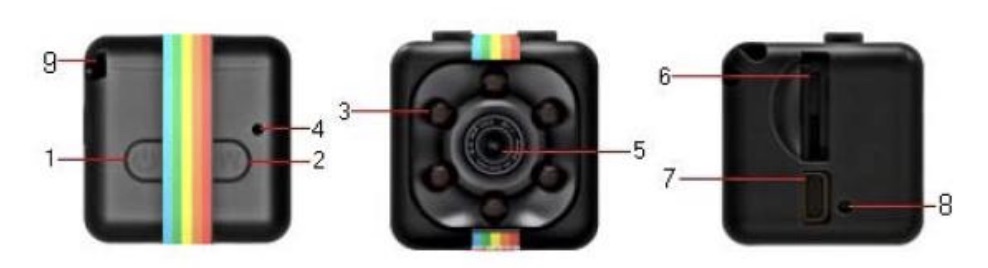

SQ11 Button Description

SQ11 Button Description
  1. ON/OFF Key
  2. Mode key
  3. Infrared lamp
  4. LED indicator
  5. Ultra wide Angle
  6. TF card port
  7. MINI USB port
  8. Reset key
  9. Sling

Charging

SQ11 has a built-in rechargeable lithium battery, please charge it before using SQ11 for the first time:

  1. Connect to a computer for charging, or to a 5V power supply.
  2. Can charge while recording, video can also charge (an external USB 5V charger or mobile power).
  3. Red light flashing when charging, fully charged red light long light, (after the red light long light, please charge again for more than 30 minutes to ensure the battery power 100%).

Note:

When the battery power is low or the memory card capacity is full, it will enter the shutdown protection state, the red and blue lights will flash for 5 seconds.

If no memory card is inserted or if the memory card is not recognised, the red and blue lights will flash for 5 seconds and then shut down automatically.

Cannot operate after startup mode, 1 minute auto shutdown.

SQ11 Recording Settings

Before using SQ11 camera, please insert the memory card, no memory card camera can not work.

The blue light is always on in standby mode.

720P Recording Mode

This mode is 720P recording, will loop overlay video.

  1. Press the power button to switch on the SQ11 camcorder, the blue light will be on when you switch on the SQ11 camcorder, then it will enter the standby mode. 2.
  2. Press the power button again, the blue light will go out after 3 flashes, this is the SQ11 has started recording.
    The light will not be on when the camera is recording.
  3. 5 minutes the camera will automatically save a video and continuous recording, and then press the power button to stop recording, back to standby mode with the blue light on.

1080P Recording Mode

This mode is 1080P recording, will loop overlay video.

  1. Press Power button to turn on the camera, the blue light is always on when the camera is turned on, it enters the standby mode. 2. Press Mode button, the red and blue lights are always on.
  2. Press the Mode button, the red and blue lights are always on. 3.
  3. Press the power button, the blue light is always on, the red light flashes 3 times and then the lights are off, this time the SQ11 has started recording. 3.
    The indicator lights will not light up when the camera is recording. 3.
  4. 5 minutes the camera will automatically save a video and continuous recording, and then press the power button to stop recording, back to standby mode with the blue light always on.

Motion Detection Recording Mode

720P Motion Detection Recording

In standby mode, press and hold the Mode button for 3 seconds, the blue light is always on, the red light blinks 3 times and then the indicator light is off, then enter the motion detection recording mode.

When the camera detects a moving object, the red and blue lights flash at the same time and record.

Tap any button to exit motion detection mode.

1080P Motion Detection Recording

In 1080P recording mode (red and blue lights are always on), press and hold the Mode button for 3 seconds, the blue light is always on and the red light blinks 3 times to enter the motion recording mode.

When the camera detects a moving object, the red and blue lights flash at the same time and record.

Tap any button to exit motion detection mode.

Photo Mode

In standby mode, press the Mode button 2 times, the red light is always on for the photo mode, then press the power button to take a picture, the red light flashes once when taking a picture.

Night vision switch

Start night vision

In standby mode, press and hold the power button for 2 seconds, the red light blinks twice to indicate that the night vision light is activated.

Switch off night vision

In standby mode, press and hold the power button for 2 seconds, the red light blinks 3 times to indicate the night vision light is off.

Reset the SQ11 Camera

Press and hold the reset button for 2 seconds to reset the camera.

Switch off the SQ11 camera

In standby mode, press and hold the power button for 6 seconds to manually switch off the camera.
Or in standby mode, it will switch off automatically after one minute.

Time Setting

After the SQ11 camera is switched on, a TIMEREST. txt file will be generated in the memory card.

In the camera off state with the cable connected to the computer, and then open the computer TIMEREST. txt file, enter the time and save it.

Time format: 20230608192526 Y (year, month, day, hour, minute, second, watermark)

20230608192526 Y (with time watermark)

20230608192526 N (no time watermark)

Note: Every time the camera loses power or is switched off, the time will be restored to its default state and will need to be reset.
