Wansview Battery Powered camera Model B1 T1 User Manual

January 8, 2022
in Wansview
0
Share on FacebookShare on Twitter

Manual information

Brand:Wansview

APP: Wansview

Model:B1,T1

This manual applies to cameras using the Wansview app

Contents hide
Manual information
What’s in the Box
Product Diagram(Base Station)
LED Indicator & Working Status(Base Station)
Button Controls(Base Station)
Product Diagram(Camera)
LED Indicator & Working Status (Camera)
Button Controls(Camera)
Caution
Connecting the camera
Download APP
Power On Base Station
Power the Camera
Connect Base Station to Network
Sync Battery Camera to Base Station
More Operations for the Battery Camera.
More Operations for the Base Station
Synchronize with Battery Camera
Add Base Station that connected network
There are three ways to add the Base Station to App
Mount the camera on wall
Mount the camera on a desktop or shelf.
On the wall(Base Station)
PDF Download

What’s in the Box

What's in the Box

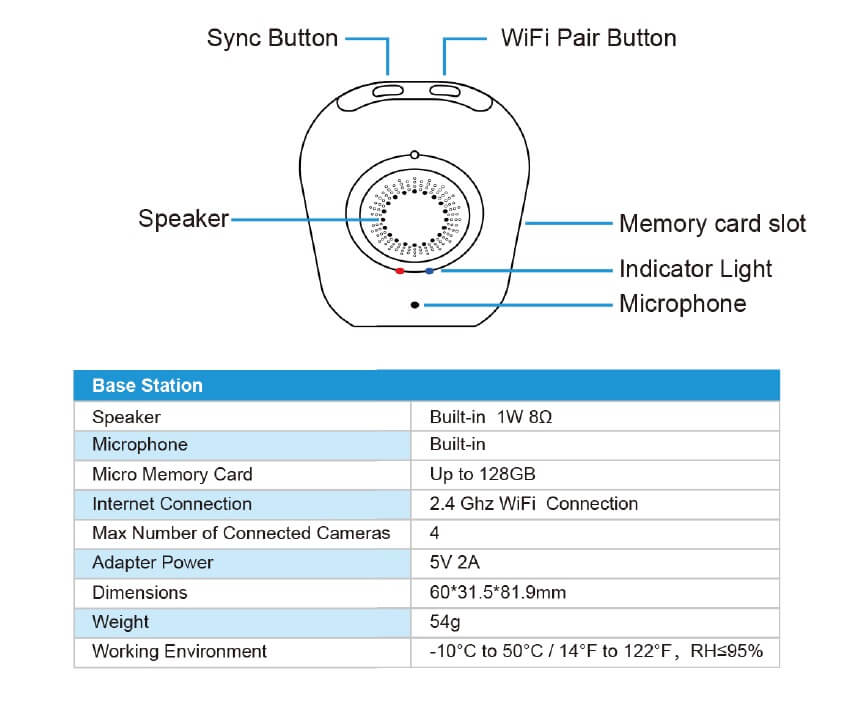

Product Diagram(Base Station)

Product Diagram(Base Station)

LED Indicator & Working Status(Base Station)

LED indicatonWorking status
OFFSleep mode/Power Off
Solid on in redNO Internet
Flashes red&blue slowly alternatelyWiFi canfiguration
Solid on in blueConnected to internet
Flashes blue slowlyPairing mode
Flashes red quicklyRestore to factory setting

Button Controls(Base Station)

ButtonFunctionOperation
Wi-Fi Pair ButtonPair with the WIFI Press and hold 5 seconds to enter pairing mode with the LED indicator flashing red&blue slowly
Sync ButtonPair with the cameraPress and hold 6-8 seconds to enter pairing mode with the L ED indicator flashing blue slowly
Press the Wi-Fi Pair Button & Sync Button at the same timeRestore to factory settingsPress and hold for 3 seconds

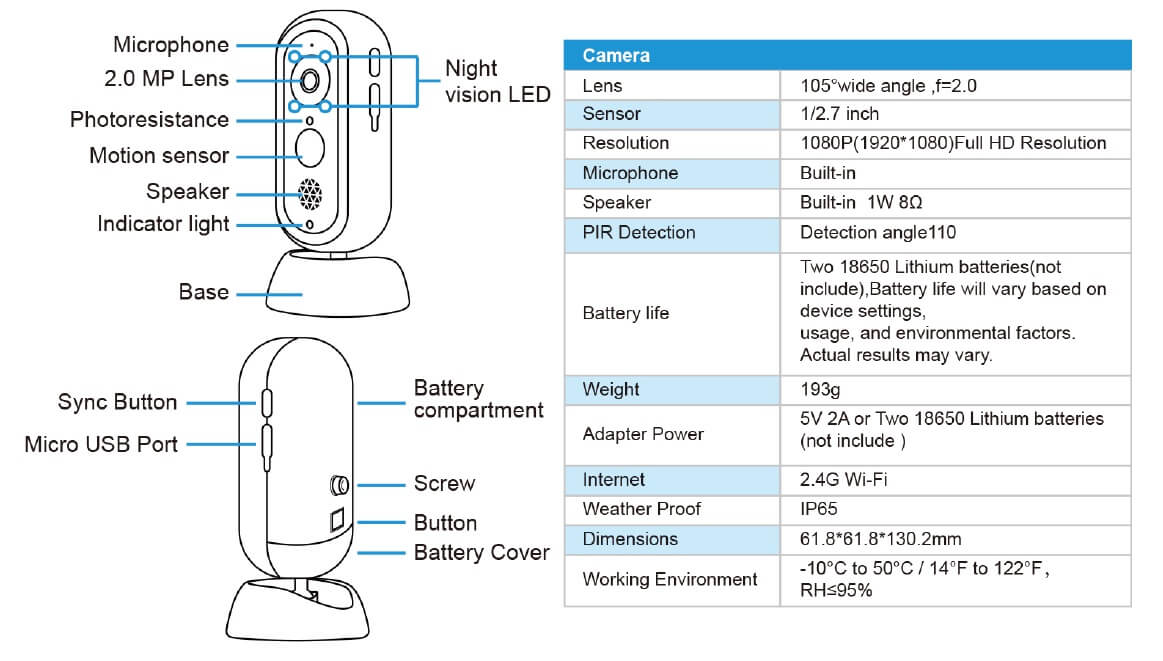

Product Diagram(Camera)

Product Diagram(Camera)

LED Indicator & Working Status (Camera)

LED in dicatonWorking status
OFFSleep mode/Power Off
Solid on in redConnected the Base station or charge the camera
Flashes red & blue slowlyPairing mode
Solid on in blueFully charged

Button Controls(Camera)

ButtonFunctionOperation
Sync ButtonPair with the Base stationPress and hold 10 seconds to enter pairing mode with the red&blue LED indicator flashing red&blue slowly

Caution

  • Use the included power adapters only to charge the camera and the base station within the permitted voltage range.
  • Only the camera is waterproof. The base station and adapters are for indoor use only.
  • Make sure the internet is functional and fast for live data feed.
  • Do not use the product at temperatures higher or lower than the specified range.
  • Do not use in environments with strong electromagnetic interferences or near corrosive substances.
  • The warranty does not cover defects and damages caused by misuse, unauthorized dismantling, or natural hazards.
  • The 18650 battery life varies according to the frequency of the triggers and the video resolution settings.
  • The PIR motion sensor can only detect motions within a certain ranges and will not be activated by motions out of the range
See also  Wansview Wifi camera Model K3 K2 User Manual

Connecting the camera

Download APP

1. Go to the App Store or Google Play to search and download ” wansview” APP to your smart phone or tablet.

Download APP

2. Or scan below QR code to get the APP.

Download APP

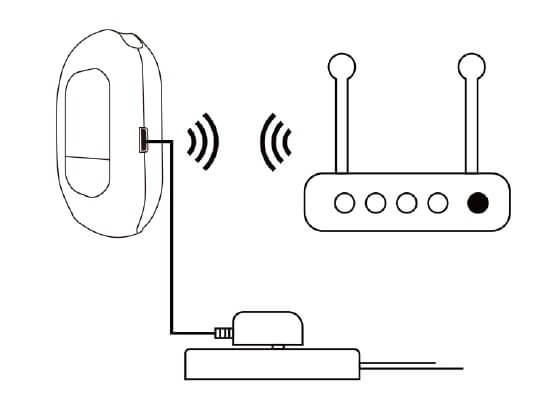

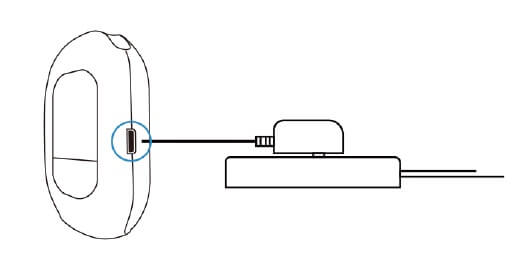

Power On Base Station

1. Connect the Base Station to a power source .

Power On Base Station

2. Place the Base Station next to the router before configuring.

Power On Base Station

Note:
The LED indicator on the Base Station will keep solid blue light when connected to the internet successfully.

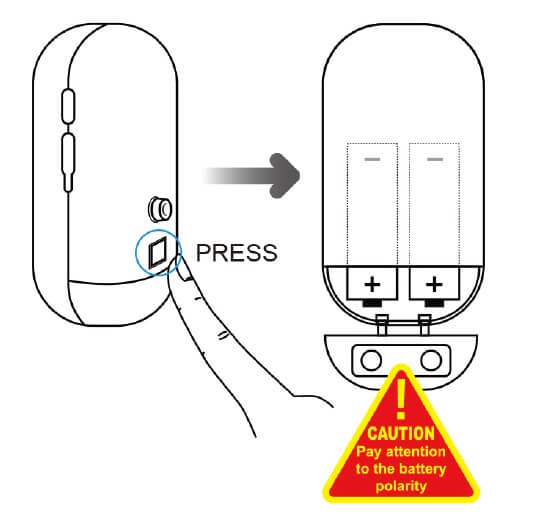

Power the Camera

1. Please install two 1 8650 lithium batteries in the camera before using.

Power the Camera

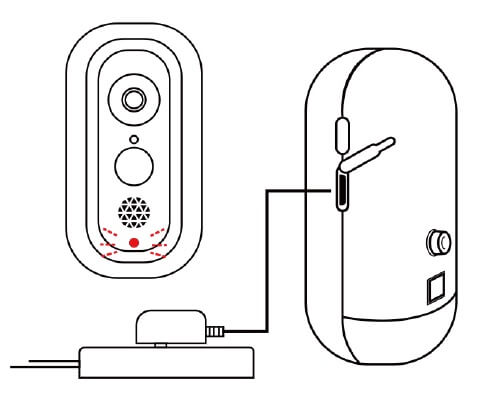

2. Coming with micro USB connector on the battery, the wifi camera can be charged by universal 5V 2A phone adapter, Save your money for new batteries continuously.(No power adapter packed in).

Power the Camera

Tips:ln order to extend the working time of the battery, please turn off the motion sensor when using it outdoors.

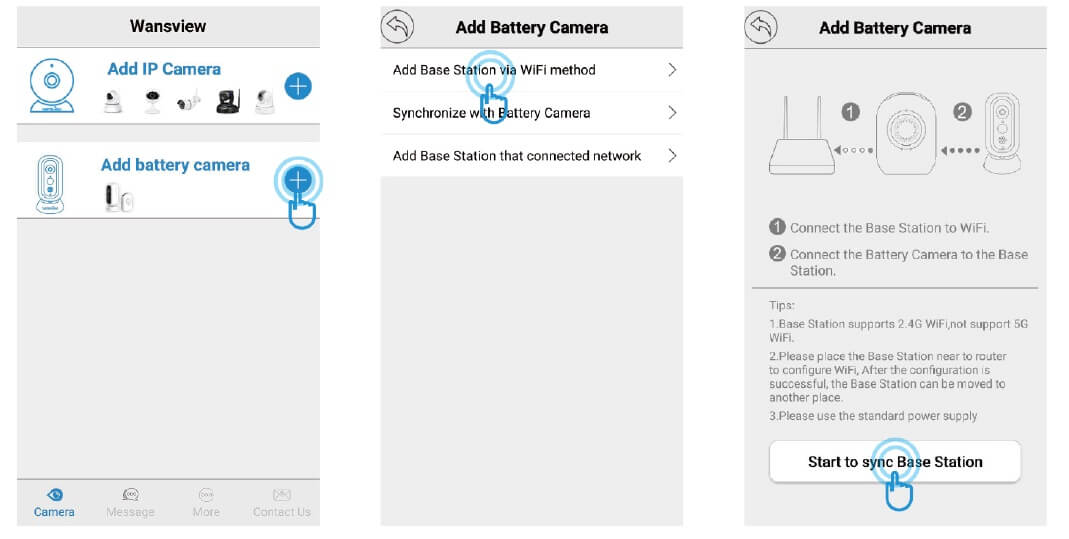

Connect Base Station to Network

Connect your mobile phone with 2.4G WiFi. (5G is not supported for the Base station)lf you are using a dual band router, make sure your 2.4G WiFi name is different from your 5G one.

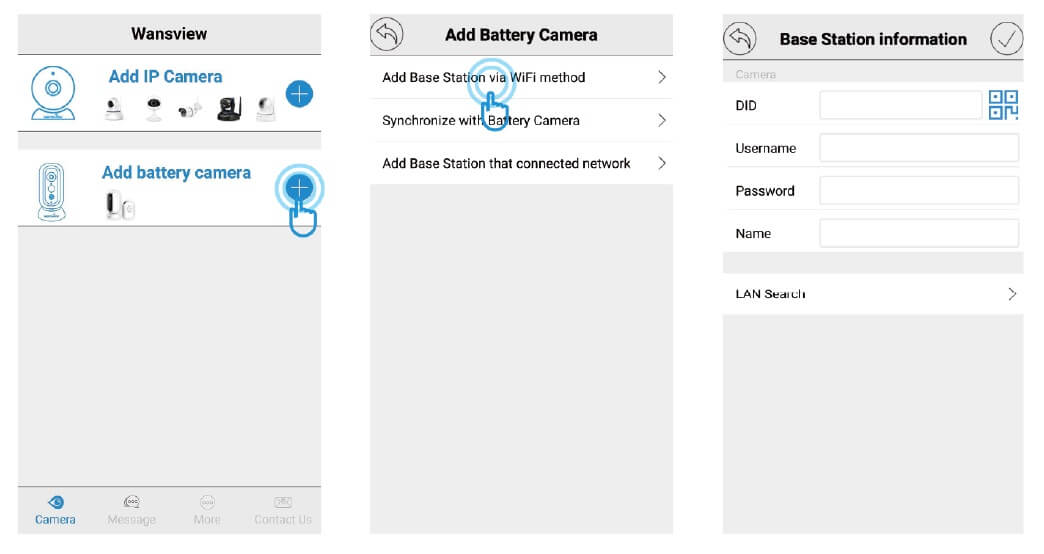

1. Launch Wansview App, Click + on Add Battery Camera.

2 Select [Add Base Station via WiFi method]

3 Click on [Start to sync Base Station]

Connect Base Station to Network

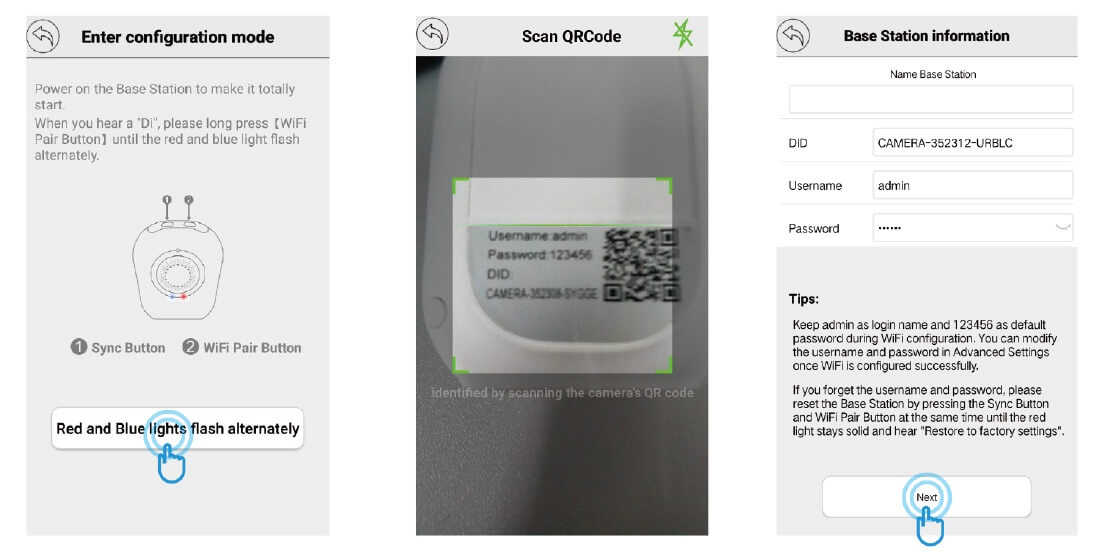

4 Long press [WiFi Pair Button] on the Base Station until you hear [Please Sync the Base Station to the Router], then Click on [Red and Blue lights flash alternately].

5. Scan the QR code on the back of the Base Station.

6. Name Base Station, then click on [Next]

Connect Base Station to Network

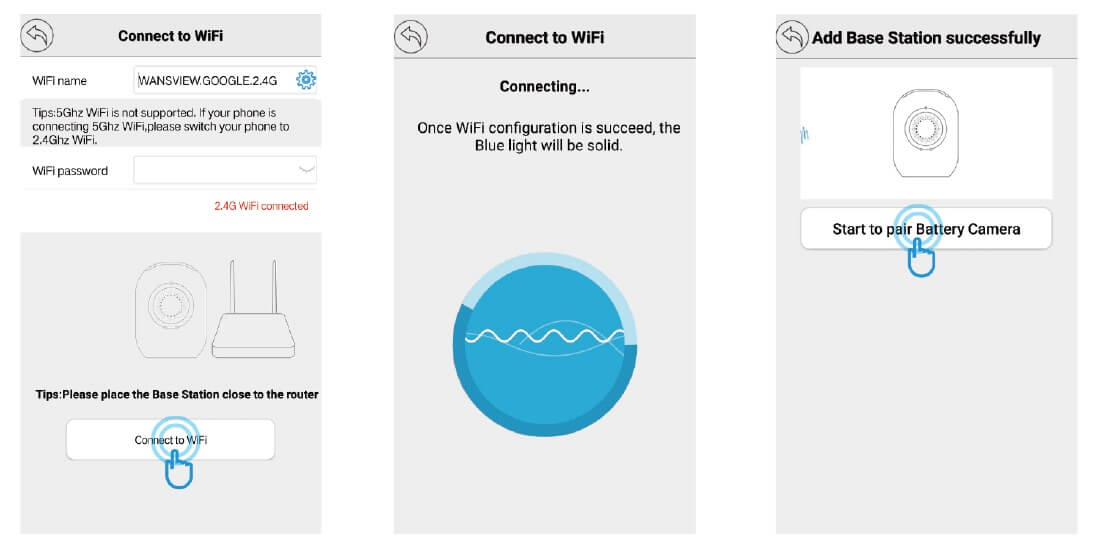

7. Your home WiFi will be located, please input your WiFi password correctly. Click on [Connect to WiFi].

8. Base Station will try to connect 2.4G, and you will hear [Received WiFi Information] from the Base Station

9. Once the Base Station is connected, you will hear [Succeed to Connect Router ] and Add Base Station Successfully.

See also  Wansview webcam usb camera Model W6 User Manual
Connect Base Station to Network

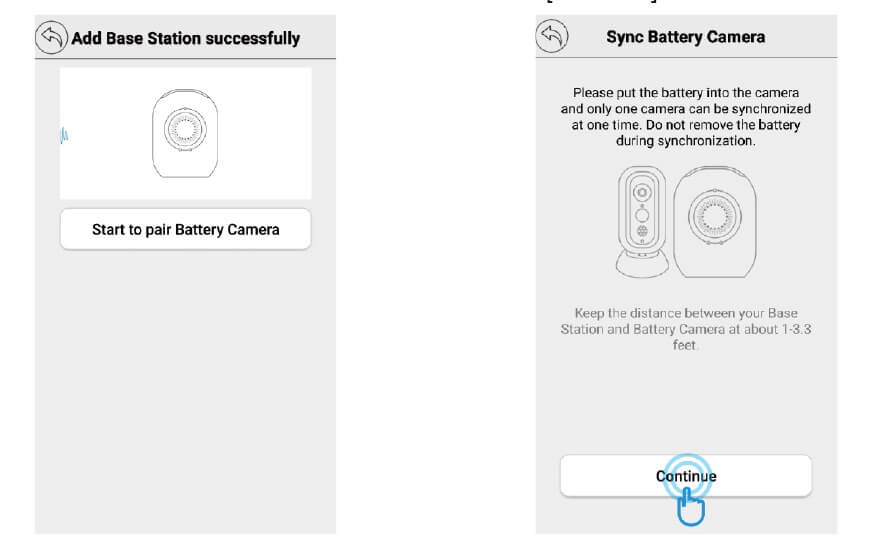

Sync Battery Camera to Base Station

1. Click On [Start to pair Battery Camera].

2. Ensure that the camera is inserted workable battery or plugged with power supply, then click on [Continue].

Sync Battery Camera to Base Station

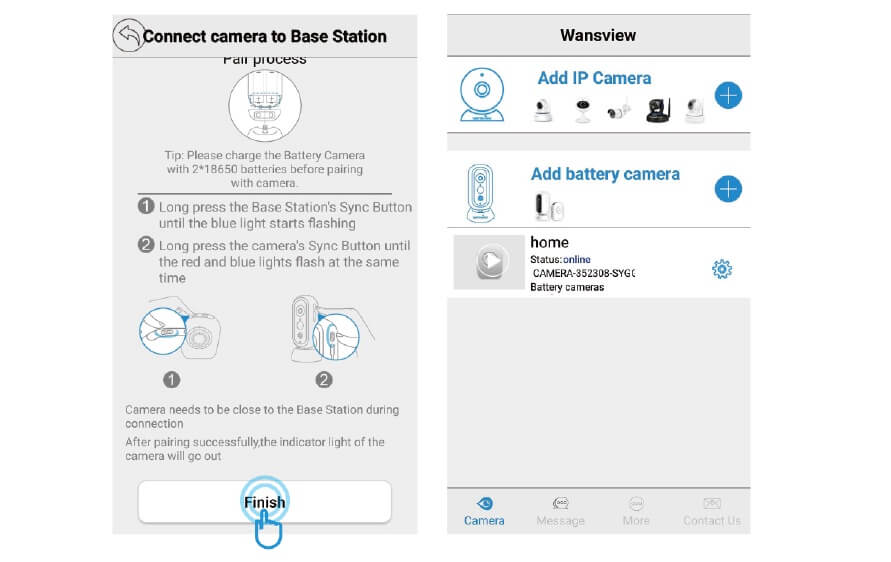

3. Long Press the [Sync Button] on Base Station until the blue light starts flashing and hear [Entering Sync Mode].
Then long press the [Sync Button] on Battery Camera until the red&blue lights flash at the same time. Click on [Finish] When you hear [Sync Succeed] and Base Station will be Online.

Sync Battery Camera to Base Station

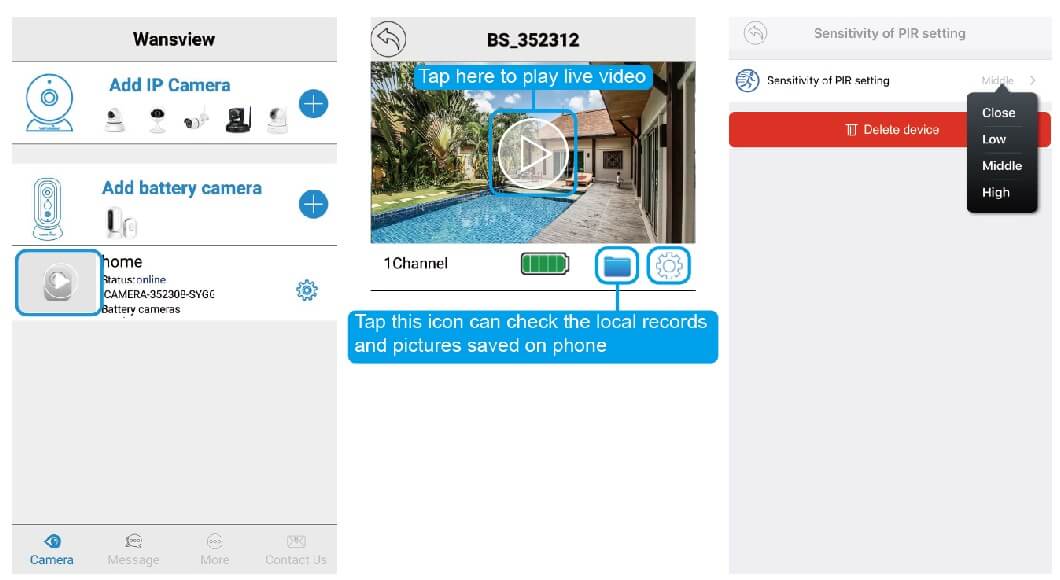

More Operations for the Battery Camera.

When the Base Station is online, tap to view the Battery Camera.
Tap icon can setup the PIR motion, close/Low/Middle/High canbe switched according to your need.
After enabled PIR motion detection, the battery camera can send notification to your phone when an alarm is detected, refer to page 18 Push Setting. It also can record alarm video to memory card if memory card is available, refer to page 19 Memory Card Alarm setting.

More Operations for the Battery Camera

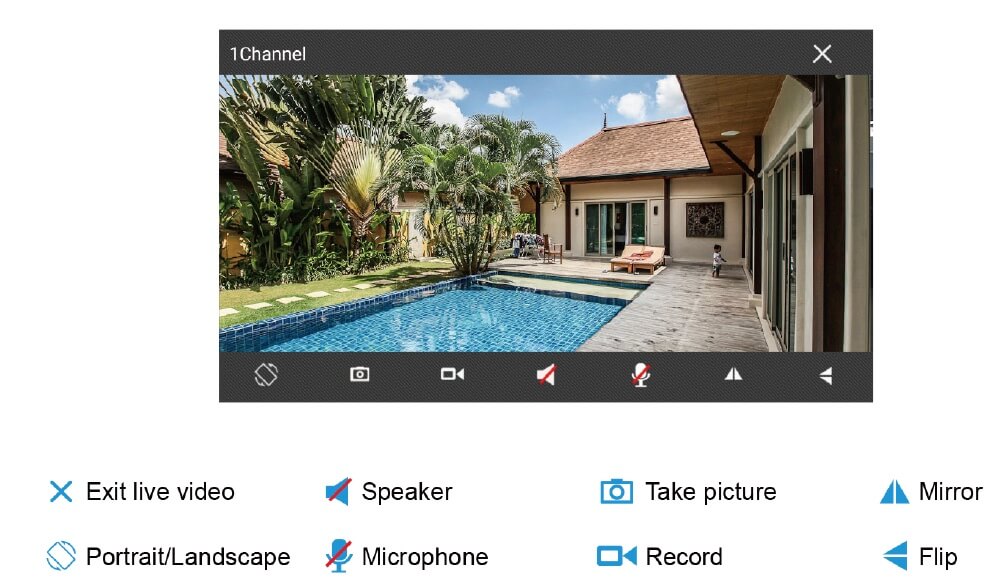

Full Screen View

Full Screen View

More Operations for the Base Station

When the Base Station is online, user can do the below operations:

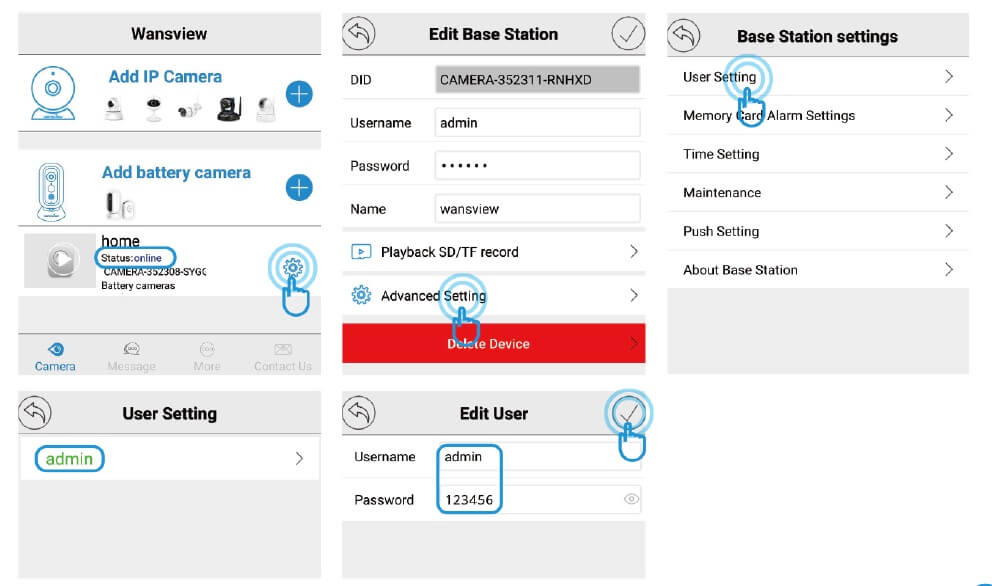

1. Change Username and password
For safety reason, please follow below illustration to change the default username and password after the Base station is connected to Wi-Fi:

More Operations for the Base Station

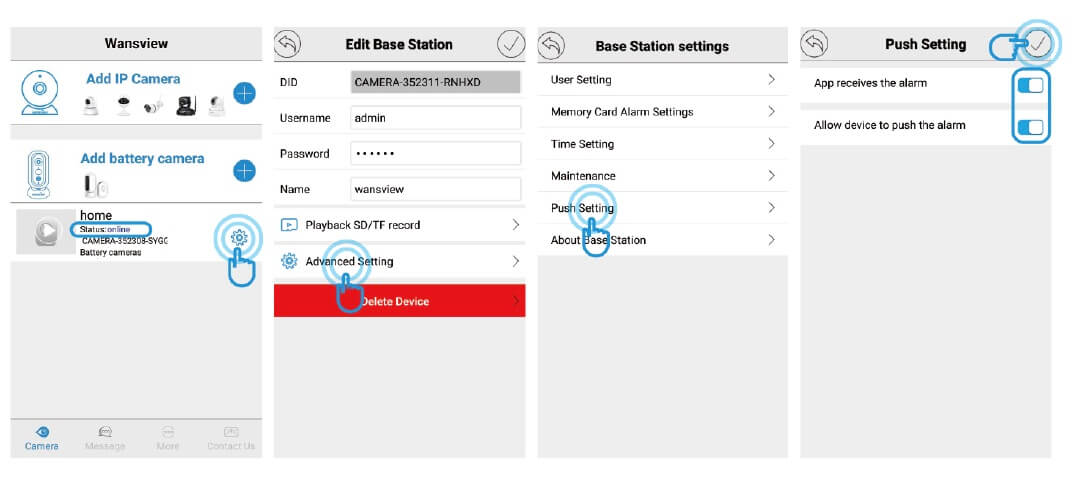

2. Push setting
Tap – Advanced setting -Push setting to enable App receives the alarm and allow device to push the alarm.

Push setting

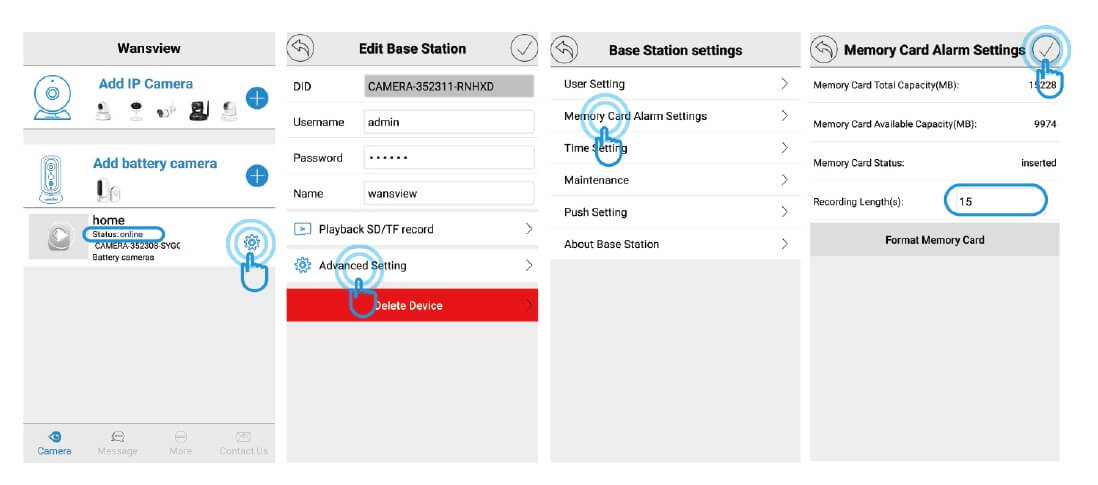

3. Memory Card Alarm setting
The Base Station supports 128GB memory card, memory card is not included!
It will send a short feed to memory card when an alarm is detected by battery camera(refer to page 15 About PIR setting) if the memory card is available. The video length can be adjusted between 10-30 seconds, please follow the below illustration to set it up:

Memory Card Alarm setting

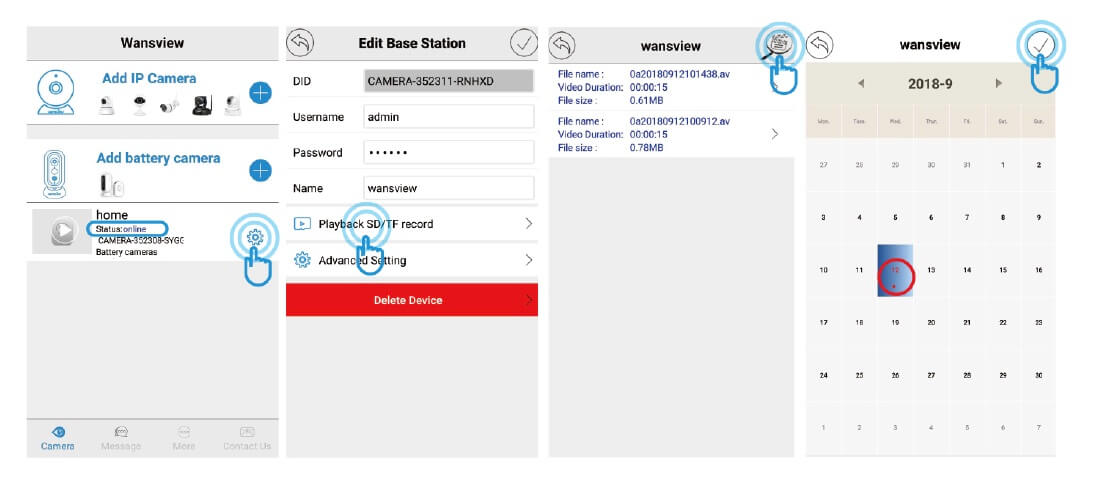

4. Playback SD/TF Record
The alarm videos saved on memory card can be playback via Wansview App.
When the Base Station is online ,tap icon Playback SD/TF card can check the alarm videos.
If you have Android phone, tap to see the Calendar, the date with red dot means there are alarms were recorded, below illustration is for Android App.
If you have IOS device, the App will go to Calendar after tapped Playback SD/TF.

See also  Wansview Hunt camera Model T01 User Manual
Playback SD-TF Record

5. Maintenance
User can reboot the Base Station and Restore the Base Station to Factory Default, if it is restored, user needs to set up WiFi for the Base Station again.

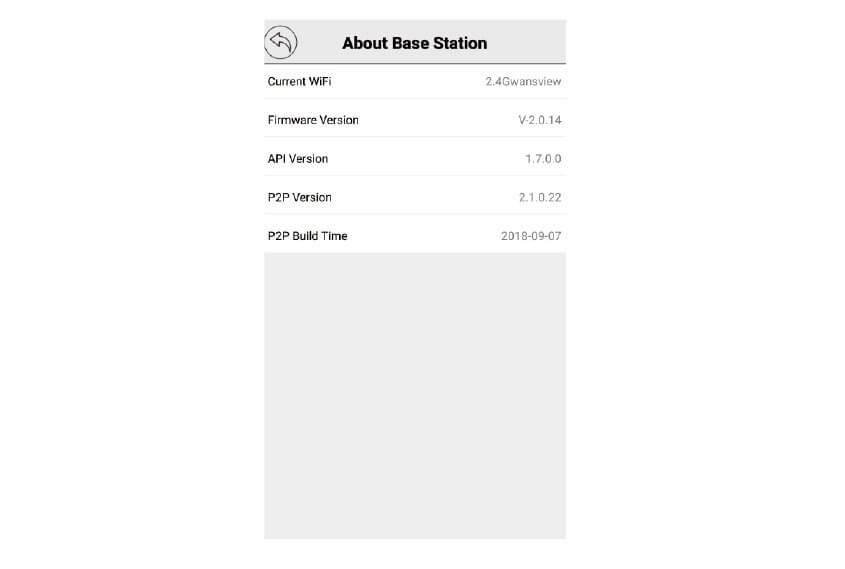

6. About Base Station
User can check the basic information for the Base station, such as WiFi status, Firmware etc.

About Base Station

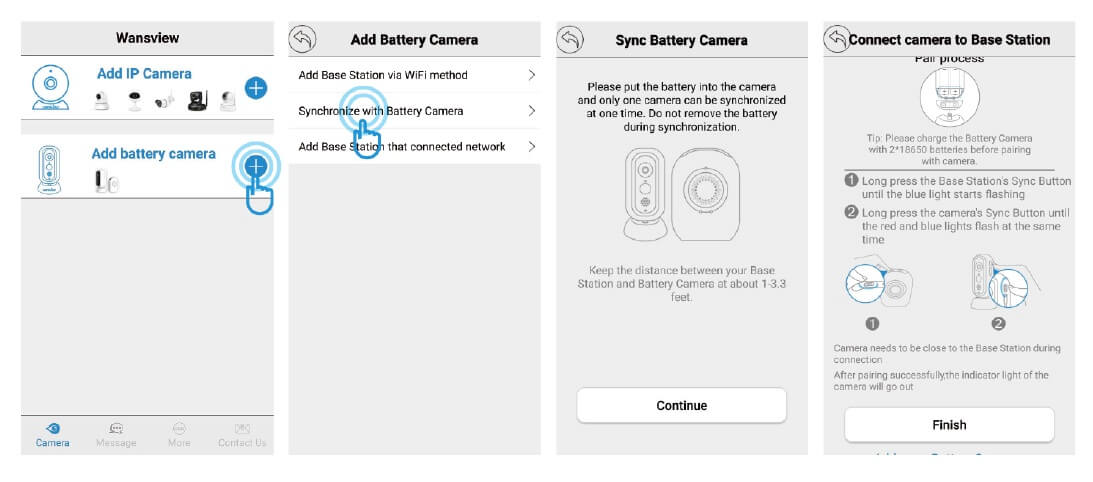

Synchronize with Battery Camera

If you have 2 or more Battery cameras, please follow below steps to connect to the Base Station, please refer to P13-14 for more details.
Tips: One Base Station can manage up to 4 Battery Cameras.

Synchronize with Battery Camera

Add Base Station that connected network

This option is suitable for adding the Base Station to another phone or the Base station is removed from the app and want to add again.
Please follow the below steps: Tap + on Add Battery camera to the Base Station already connected network

Add Base Station that connected network

There are three ways to add the Base Station to App

Way 1: Lan Search


If the mobile device and the Base Station are in the same WiFi network, user can use “Lan Search” to search the connected Base Station.


Way 2: Scan QR Code
If the Base Station is on your hand, you can tap to scithe Base Station’s QR code (on the back) to get the information.

There are three ways to add the Base Station to App

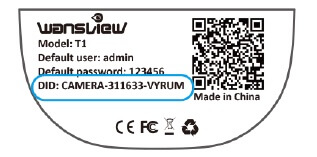

Way 3: Manually input Base Station information

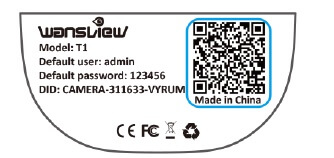

The Base Station’s DID can be found on the back of the Base Station.

There are three ways to add the Base Station to App

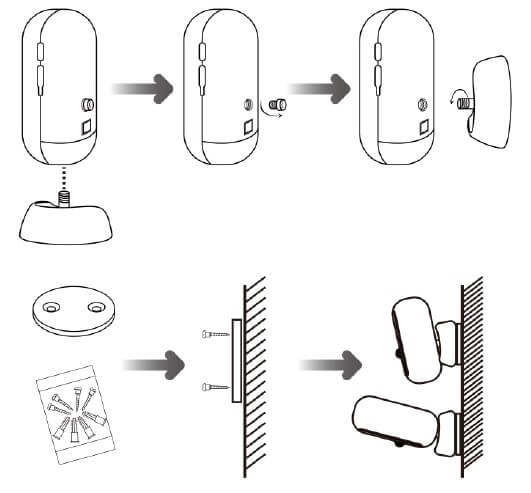

Mount the camera on wall

Fasten the mounting screws into the wall and attach the magnetic mount.
When you are mounting the camera to drywall, be sure to use the plastic anchors.

Mount the camera on wall

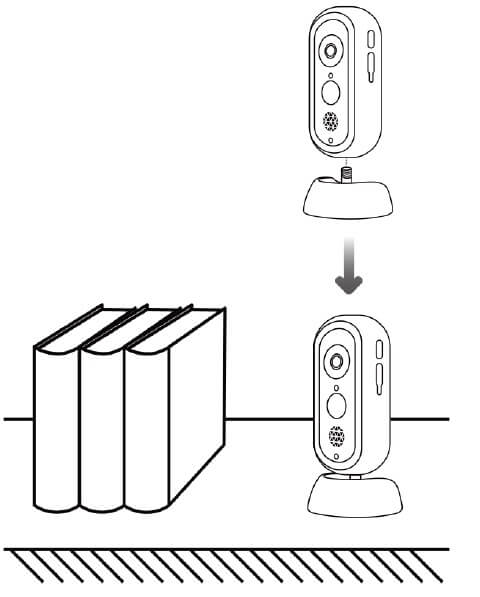

Mount the camera on a desktop or shelf.

Mount the camera on a desktop or shelf

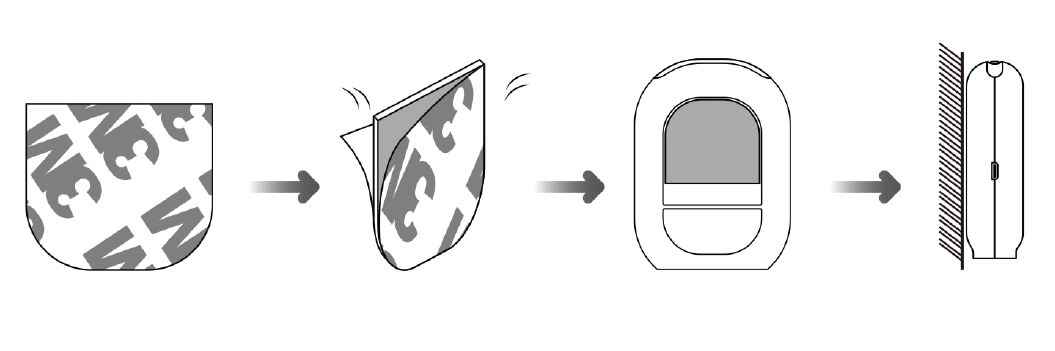

On the wall(Base Station)

On the wall(Base Station)

PDF Download

Wansview Battery Powered camera Model B1 T1 User ManualDownload
