Set Up YI IoT Camera User Manual (Ultimate Guide)

August 13, 2023
in YI IoT
214
Share on FacebookShare on Twitter

This article contains all the contents of YI IoT, multiple ways to add, settings of YI IoT camera functions, how to use the computer, and will be continuously updated.

Before you start you need to download YI IoT APP and register your account.

Applicable to: Cameras with YI IoT APP or any other brand cameras using YI IoT. YI IoT Light bulb camera is also applicable to this guide

YI IoT and YI Home are different apps, if you are looking for a guide to YI Home, check out: How To SetUp YI Home or Kami Camera

Due to the update of yi iot, some of the interfaces of this guide will be different and will be updated in the future.

Contents hide
YI IoT APP download
Register your account and login
Connect YI IOT Camera
Connect power
Add camera
Add camera: WiFi connection
Add camera: Hotspot config to wifi
How to use YI IoT Camera without Internet?
YI IoT Important Function Settings
Share the camera
QR Code Share
YI loT account Share
Recording Settings
View Camera Recording
Motion Detection Settings
Motion tracking Settings
YI IoT Light bulb camera Setup
YI IoT APP Interface Description
Video Tutorials
YI IoT For PC
How To Add YI IoT Camera To Your Computer?
YI IoT For PC Interface Description
Why add YI IoT camera failed?
I heard “wifi connection failed” or “wifi password error”
I heard “Pairing has timed out”
What to do if I did not hear “QR Code scan is successful”?
How to reset YI IoT camera?
Can YI IoT Camera connect to YI Home or Kami Home APP?
Why some YI IoT camera features I don’t have?
YI IOT CAMERA FAQ

YI IoT APP download

YI IoT supports Android and iPhone, you can download it from google play or app store.

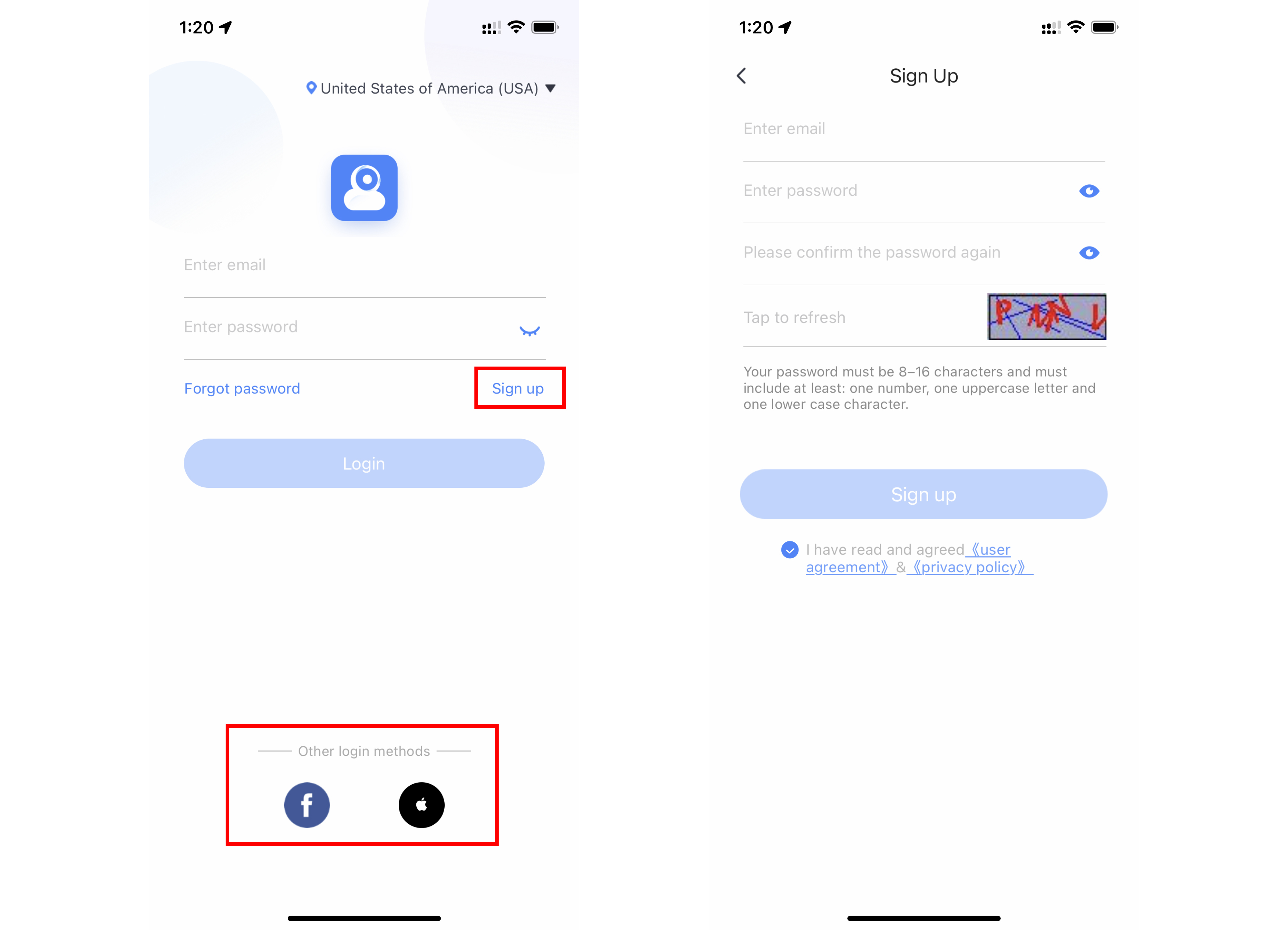

Register your account and login

YI IoT only supports email registration, or you can sign in with Facebook.

Register your account and login - YI IOT

Connect YI IOT Camera

Connect power

Before add YI IoT camera, please connect YI IoT camera to the power supply first.

After the device is successfully started, wait for about 20s, and you can start scanning when you hear a beeping sound.

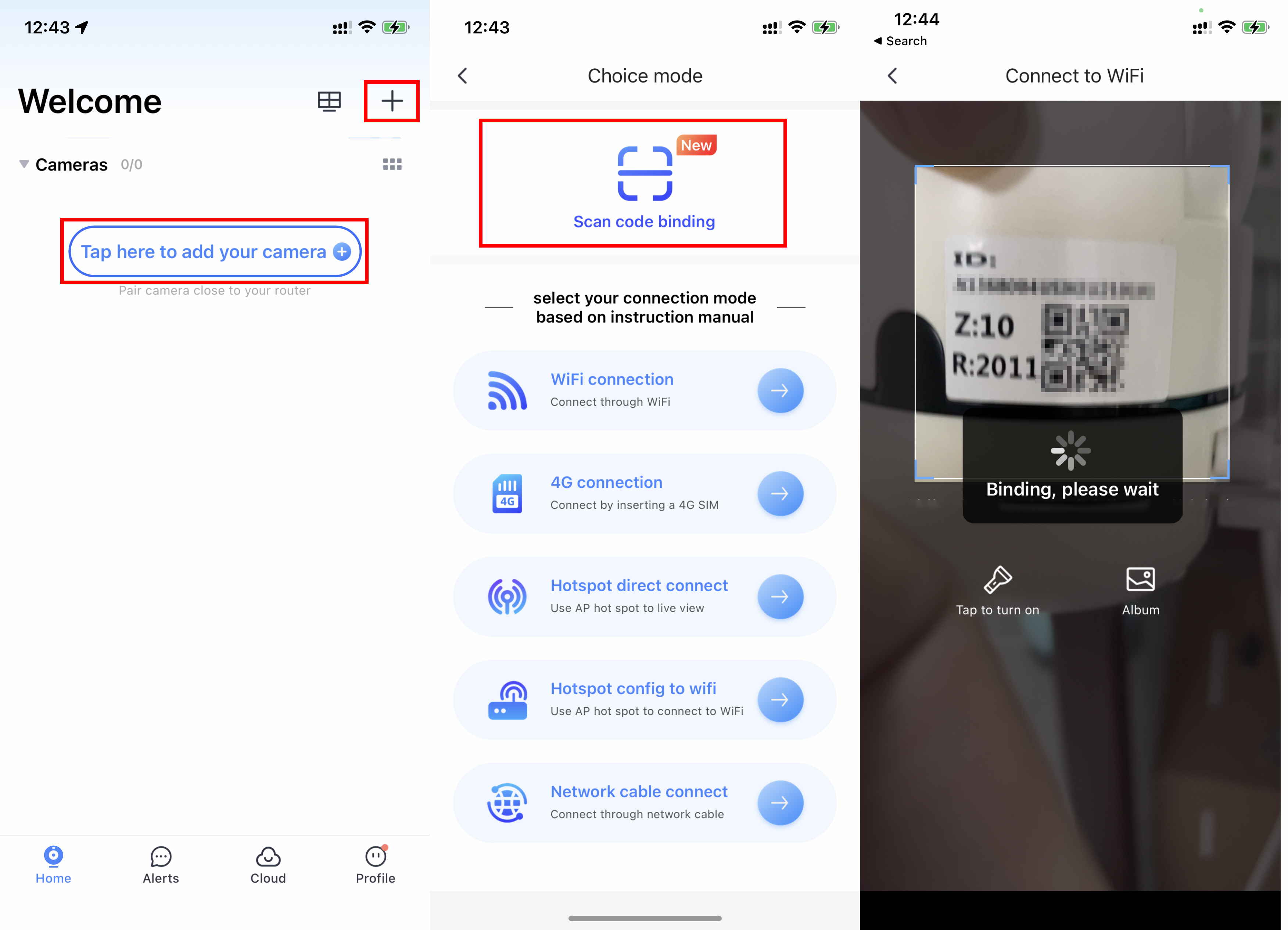

Add camera

There are 3 ways to add a YI IoT camera, we recommend using ‘WiFi connection’ to add a YI IoT camera.

Click the ‘+’ icon, then click ‘Scan code binbing’, scan the QR code on YI IoT camera, the APP will show the recommended way to add.

Follow the instructions on the APP to add a YI IoT camera.

Add camera - yi iot

Can’t find the QR code on the YI IoT camera? You don’t need to scan the QR code, you can add the camera manually.

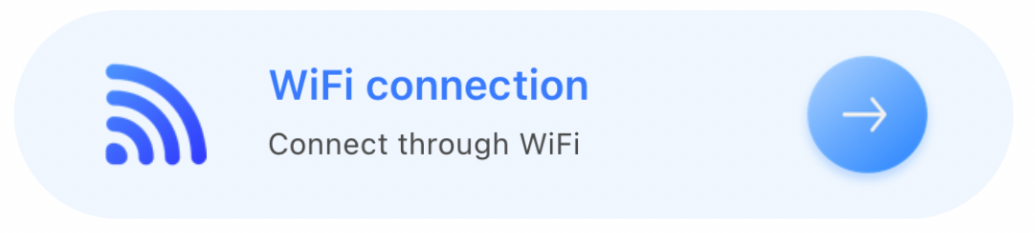

Add camera: WiFi connection

Add camera WiFi connection - yi iot

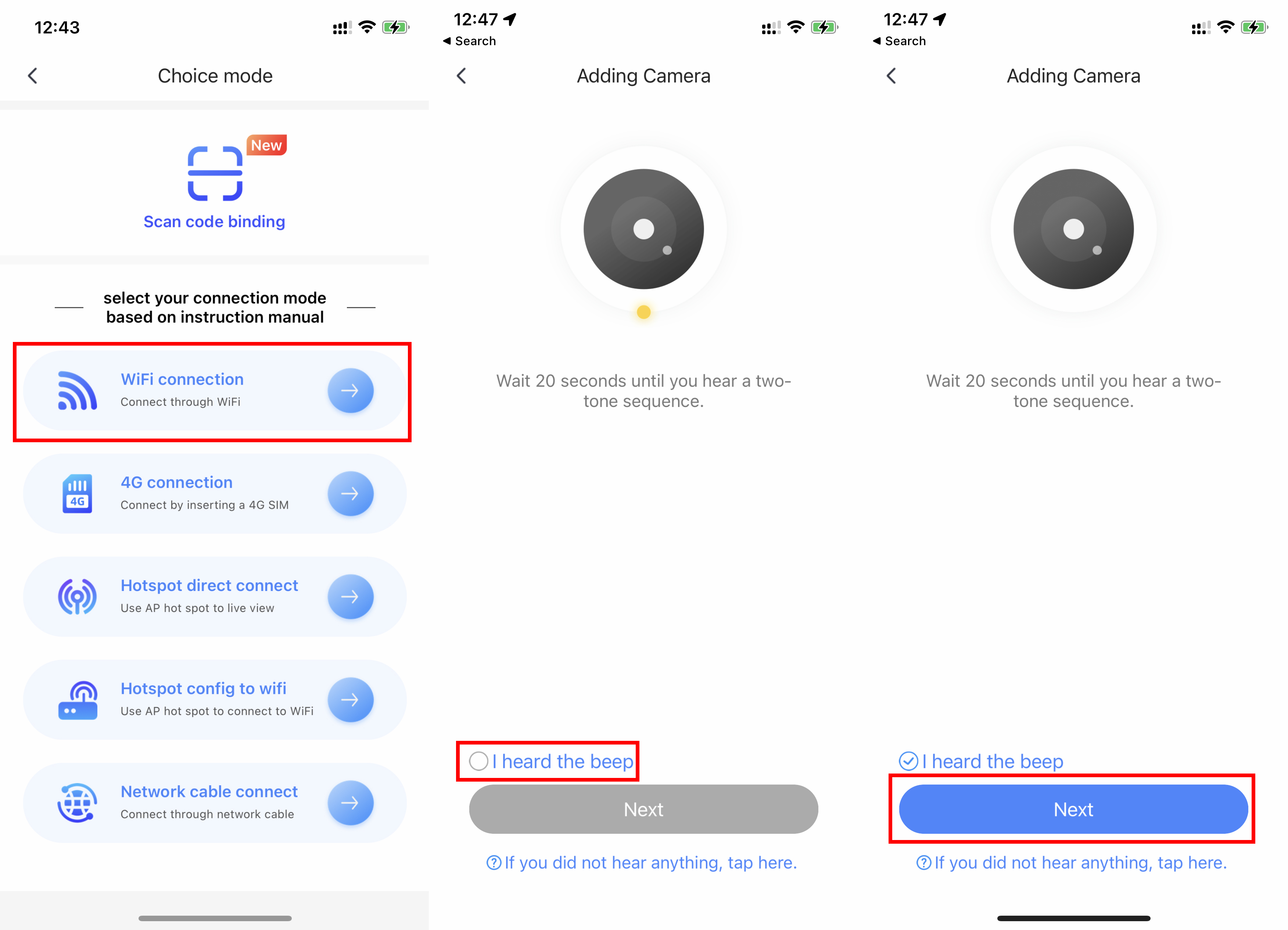

1. Select WiFi connection, make sure YI IoT camera is beeping, click ‘l heard the beep‘ > Next.

Drop drop sound

Note: Only when YI IoT camera beeps ‘drop-drop’, you can add YI IoT camera, no beep please reset YI IoT camera.

Add camera- WiFi connection - yi iot

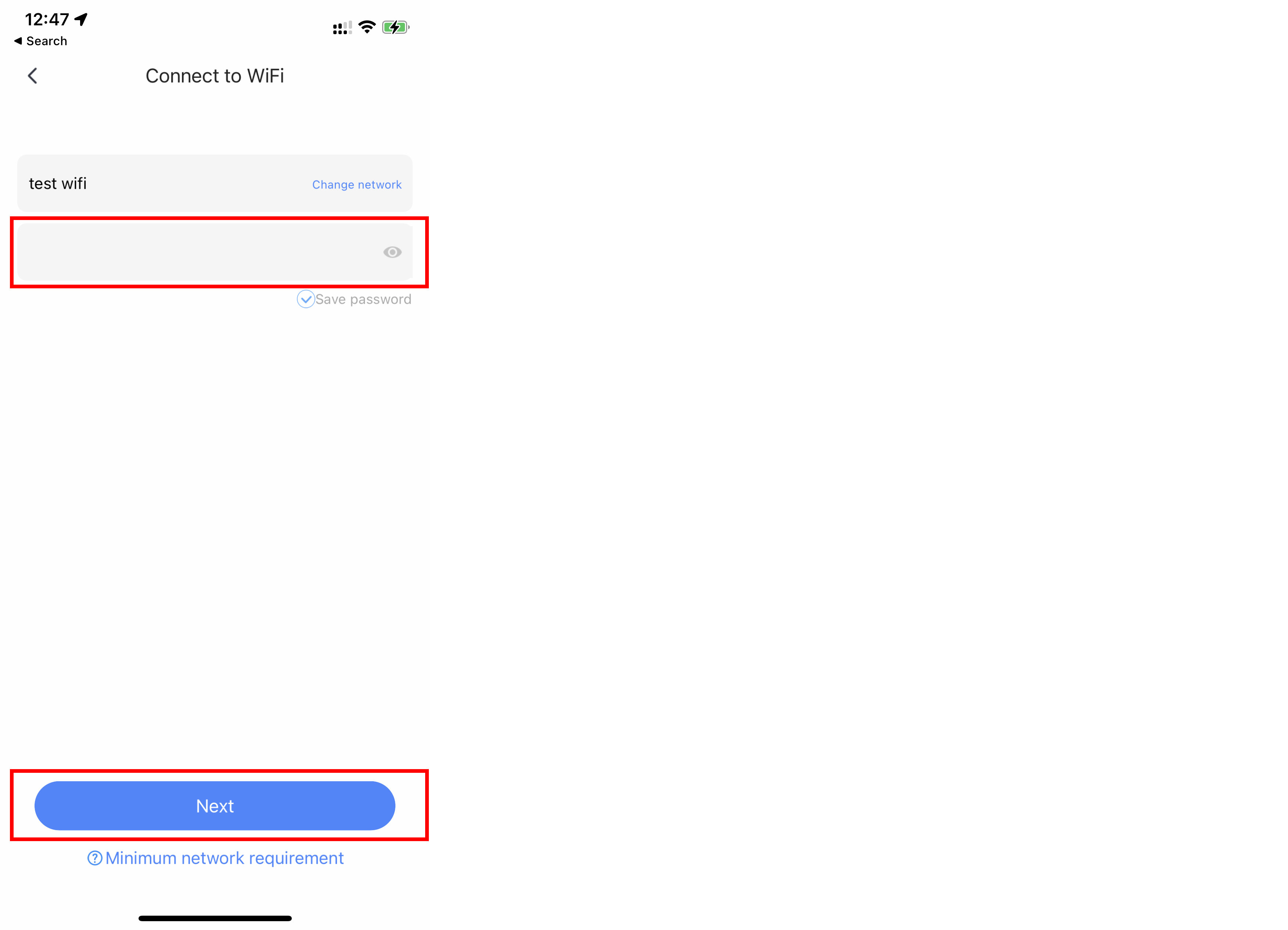

2. Enter your WiFi password, then click next.

If the app does not show your wifi, please make sure your phone is connected to wifi.

Add camera- WiFi connection - yi iot 3

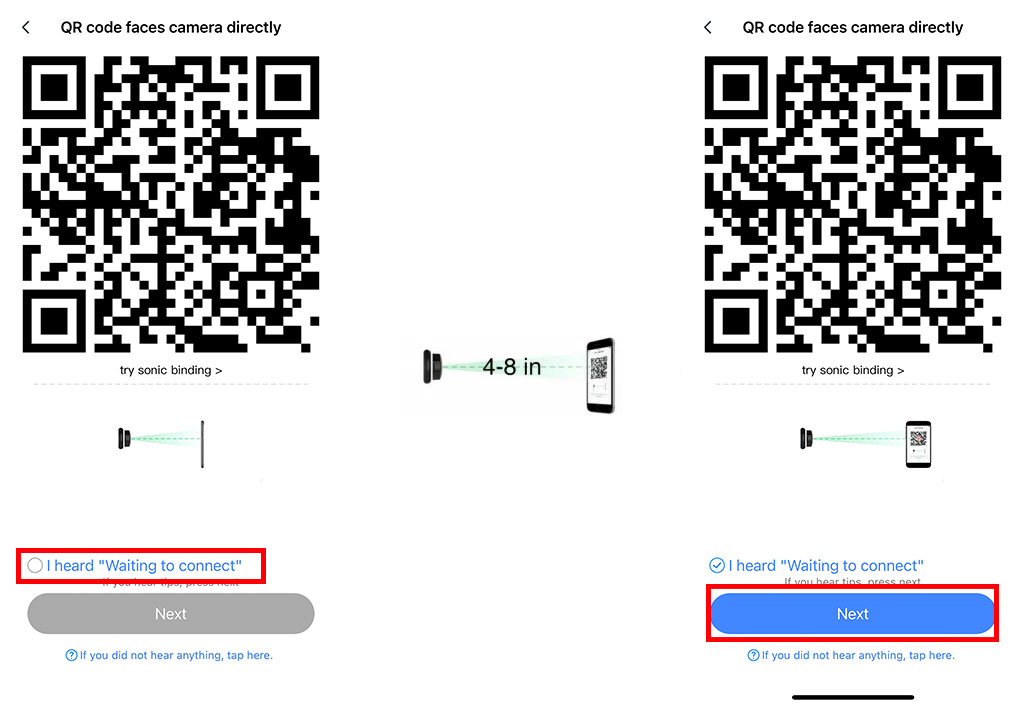

3. The app shows the QR code to YI IoT camera to scan, phone is 4-8 inches away from the camera, camera will issue a voice prompt for a successful scan.

After the camera issued voice prompts click “I heard Waiting to connect“, then enter the next step

YI IoT camera scan to QR code
Add camera- WiFi connection - yi iot

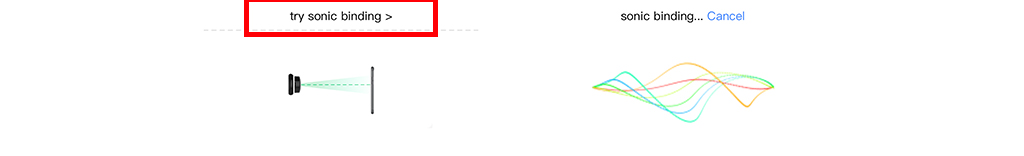

You can turn on ‘try sonic binding’, to improve the connection success rate.

Add camera- WiFi connection - yi iot

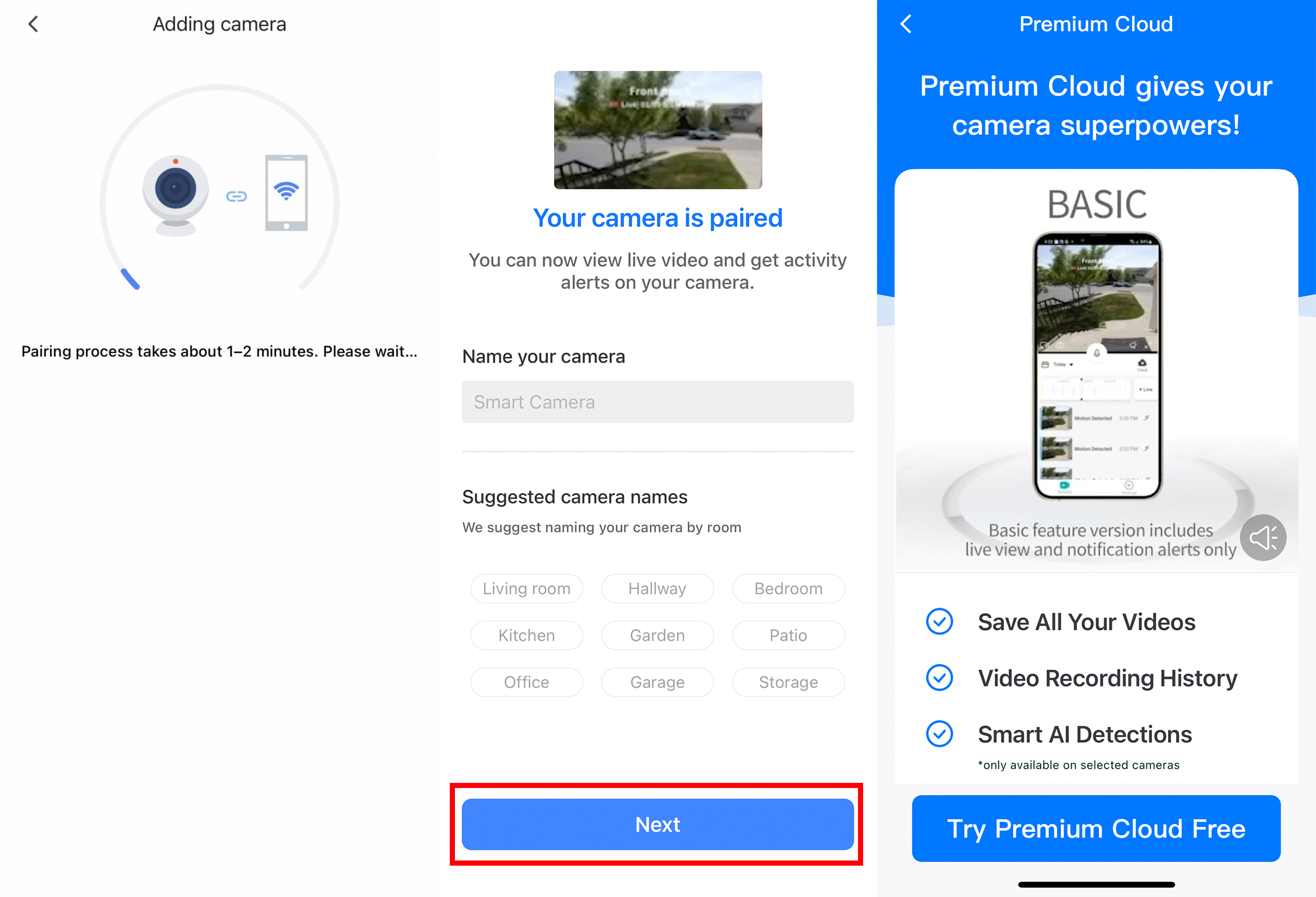

4. Wait for YI IoT camera to connect to wifi, set the camera name after successful connection.
The new YI IoT camera comes with free cloud storage, or click ‘<‘ to cancel.

Add camera- WiFi connection - yi iot

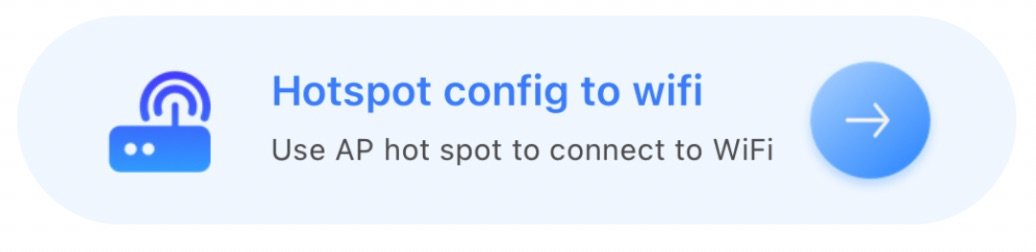

Add camera: Hotspot config to wifi

Hotspot config to wifi -yi iot

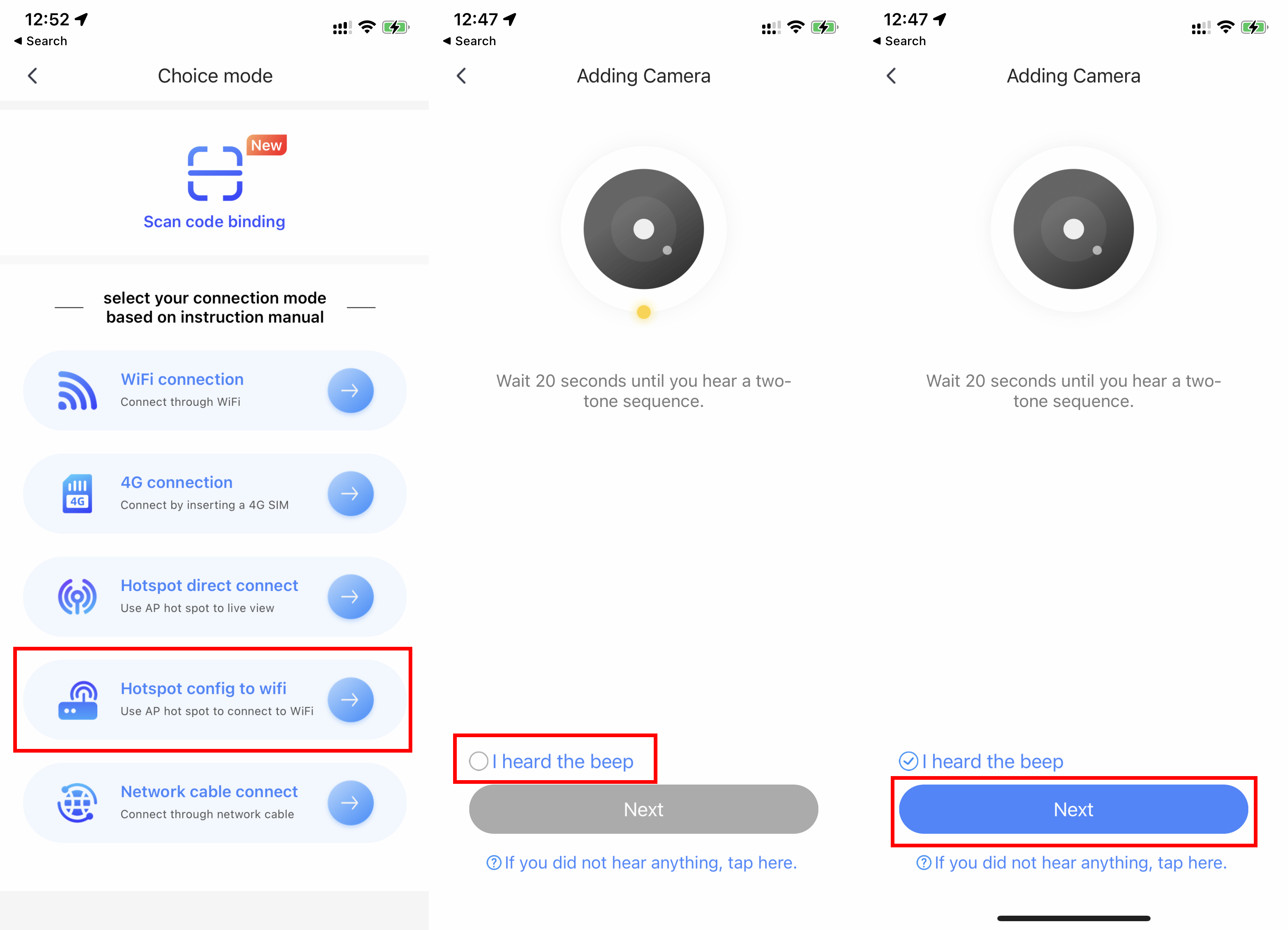

1. Select ‘Hotspot config to wifi‘,make sure YI IoT camera is beeping, click ‘l heard the beep‘ > Next.

See also  YI IoT Light Bulb Camera Review and SetUp
Drop drop sound

Note: Only when YI IoT camera beeps ‘drop-drop’, you can add the camera, no beep please reset the camera.

Add camera- Hotspot config to wifi

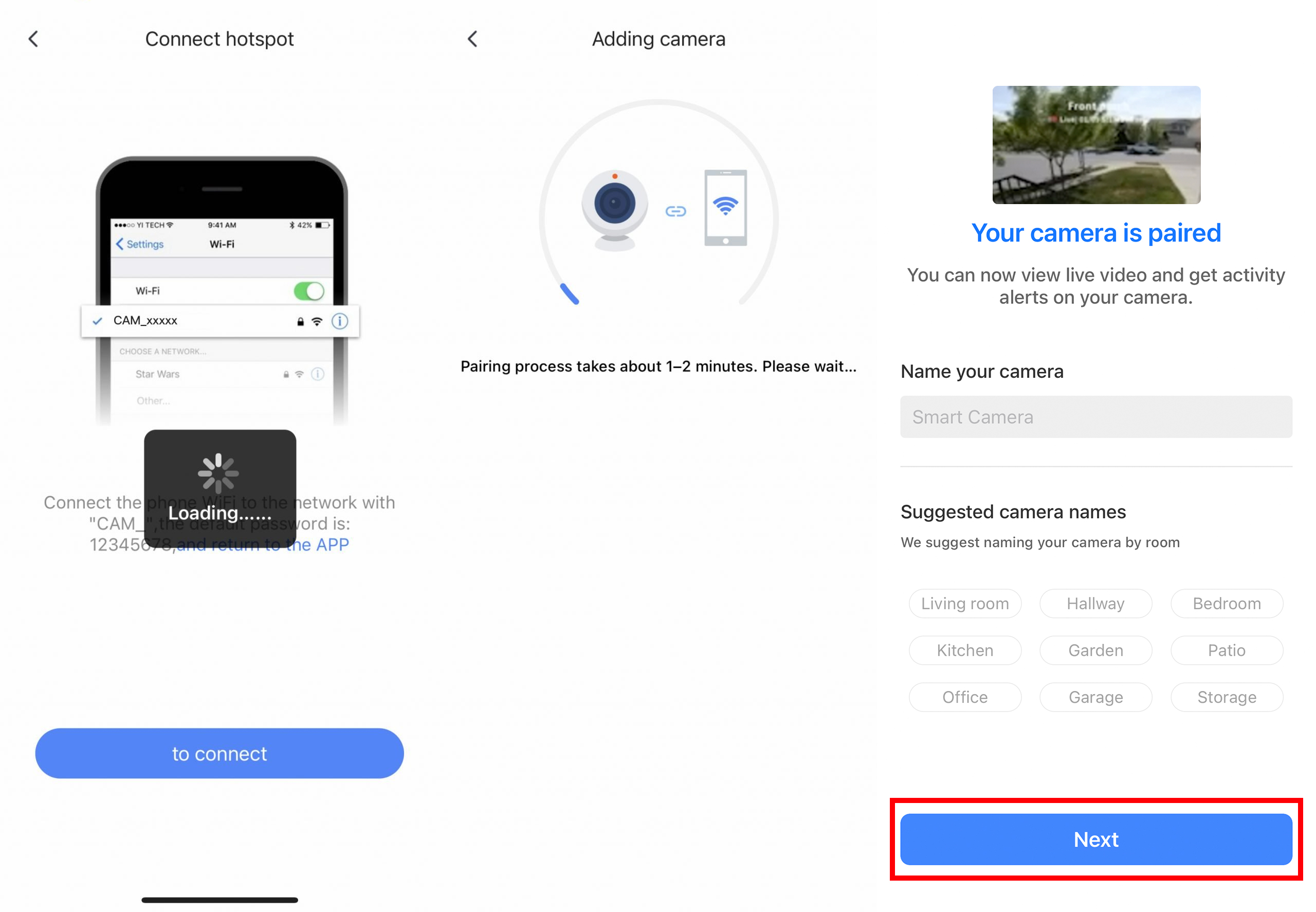

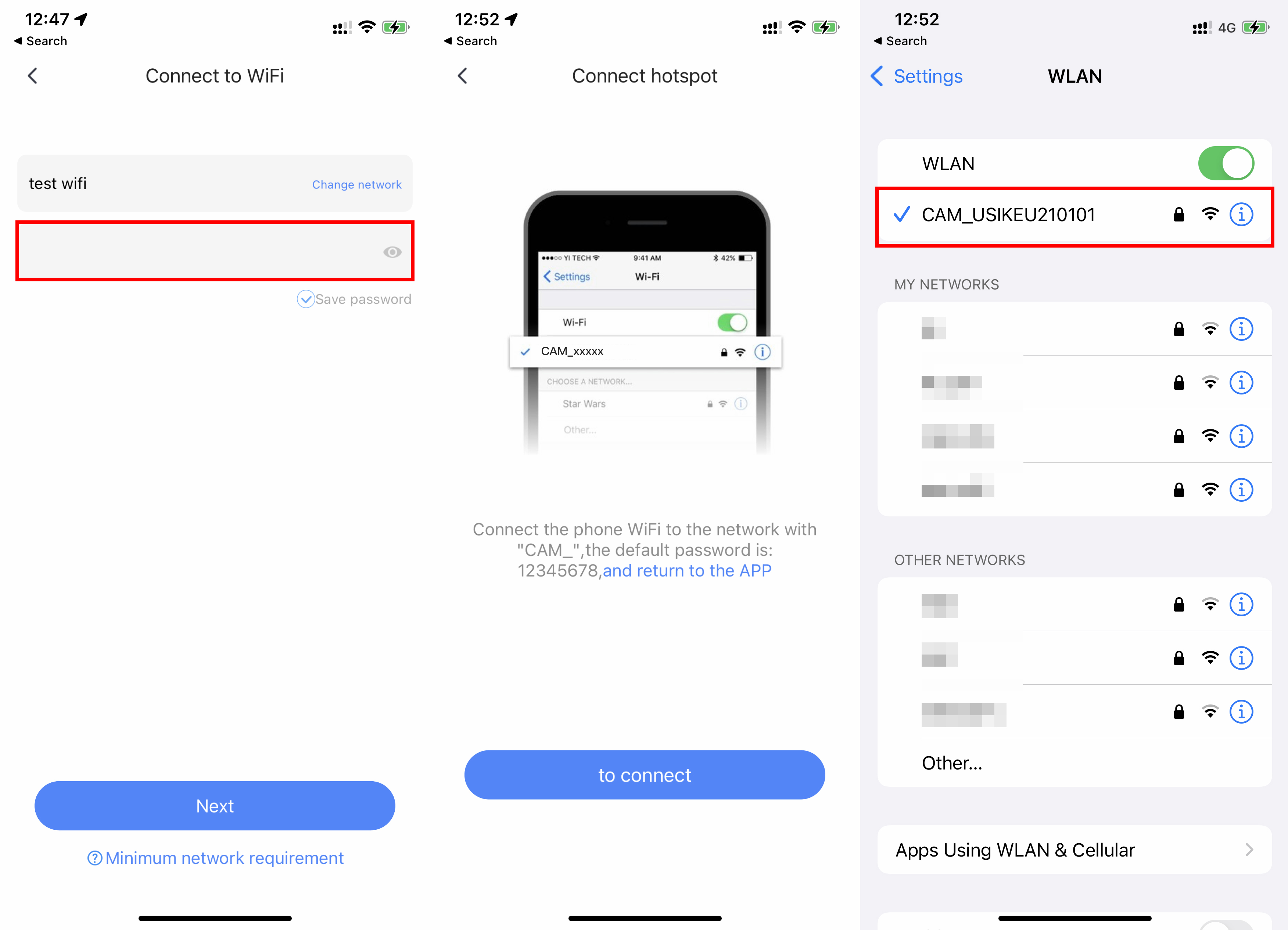

2. Enter your wifi password, then connect the phone WiFi to the network with”CAM_ “the default password is: 12345678 and return to the APP

Add camera- Hotspot config to wifi

3.Back to YI IoT APP, wait for YI IoT camera to connect to wifi, set the camera name after successful connection.

Add camera- Hotspot config to wifi

How to use YI IoT Camera without Internet?

If you don’t have wifi, or use YI IoT camera without internet, you can use Hotspot direct connect.

But you can’t watch YI IoT camera remotely, you can’t receive alarm notifications, you can only use the simplest functions.

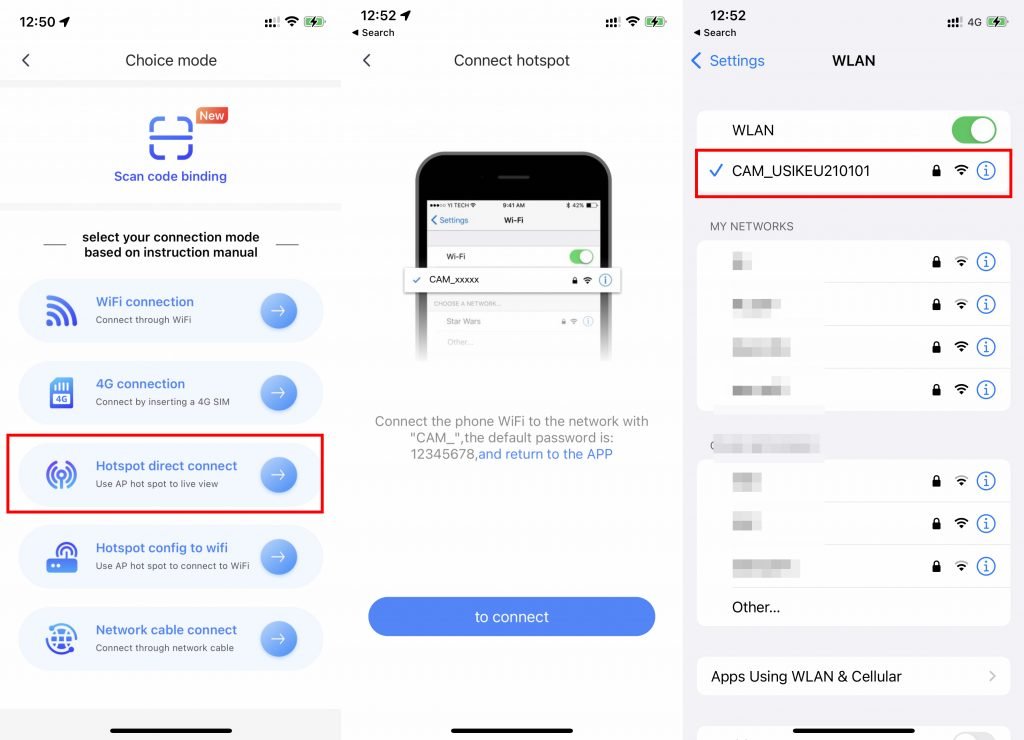

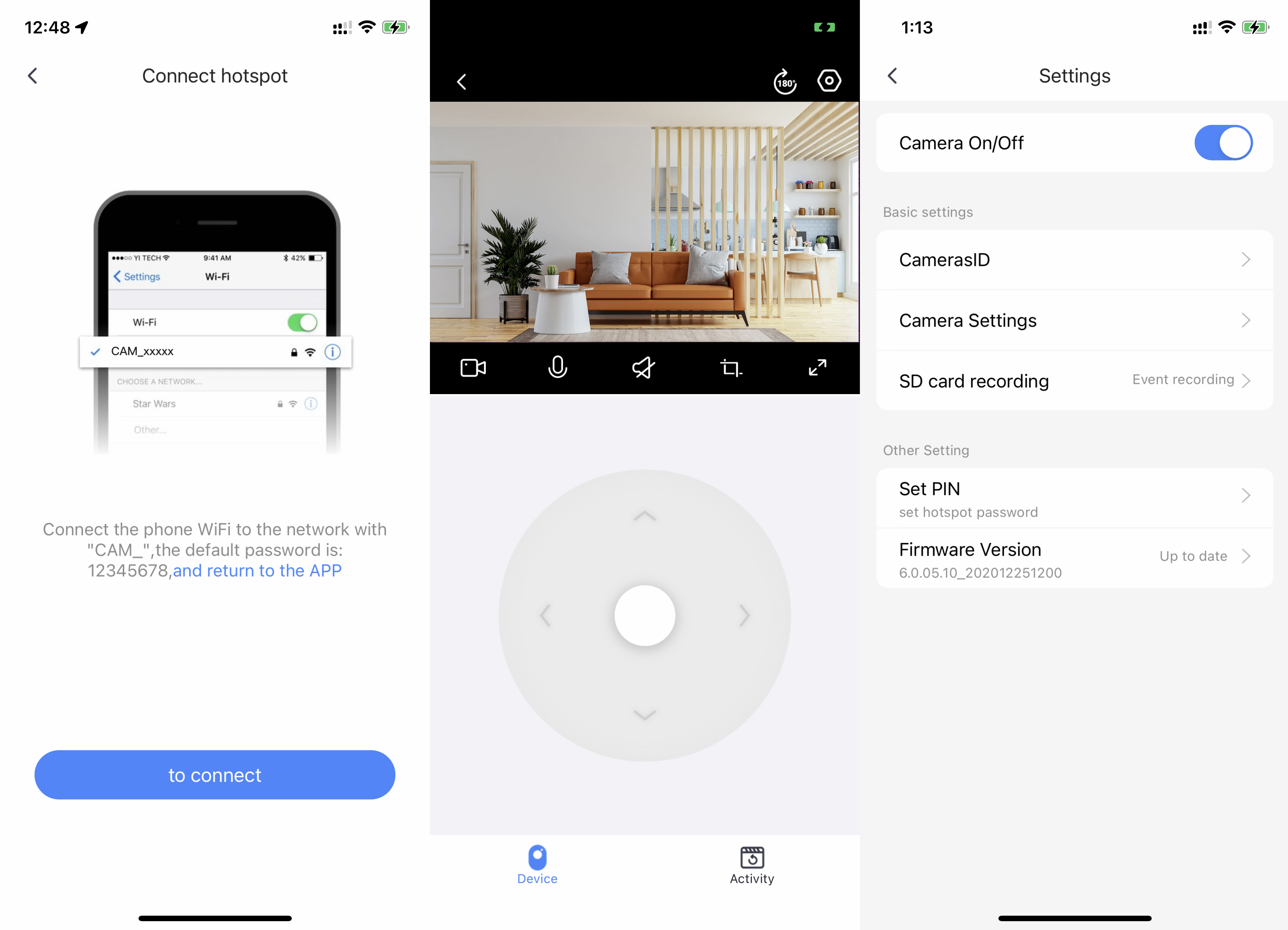

1. Select Hotspot direct connect, then connect the phone WiFi to the network with”CAM_ “the default password is: 12345678 and return to the APP

How to use YI IoT Camera without Internet?

2. Go back to the app, click on to connect, and now you can use the camera.

Note: This mode can only be used if you connect to the camera’s hotspot wifi.

How to use YI IoT Camera without Internet-yi iot

YI IoT Important Function Settings

Share the camera

Sharing the camera allows multiple phones to use the camera.

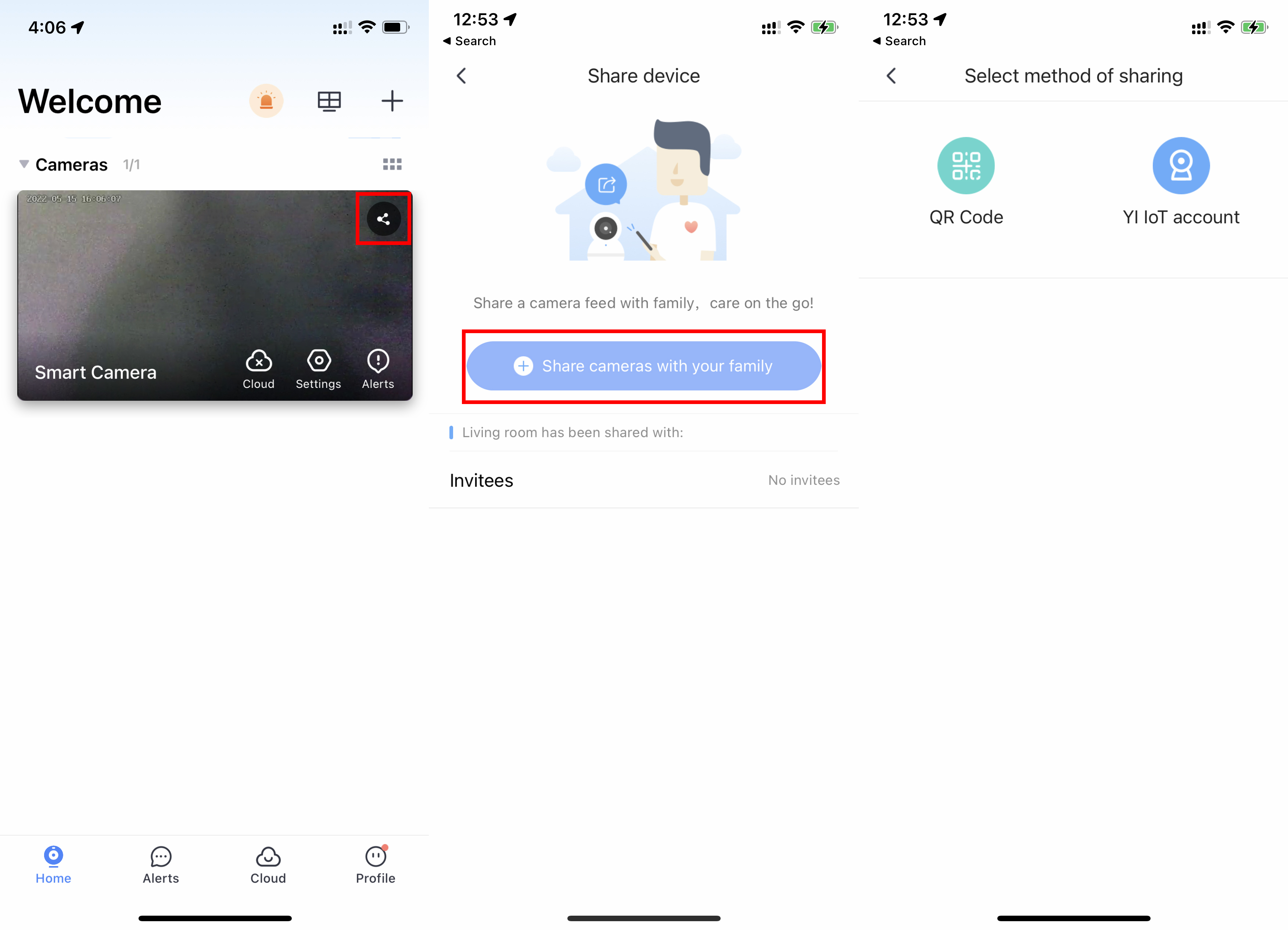

1. Click on the share icon > Share cameras with your family,You can choose QR Code or YI loT account to share.

Note: The other party needs to have a YI IoT account to add a camera.

Share the camera - yi iot

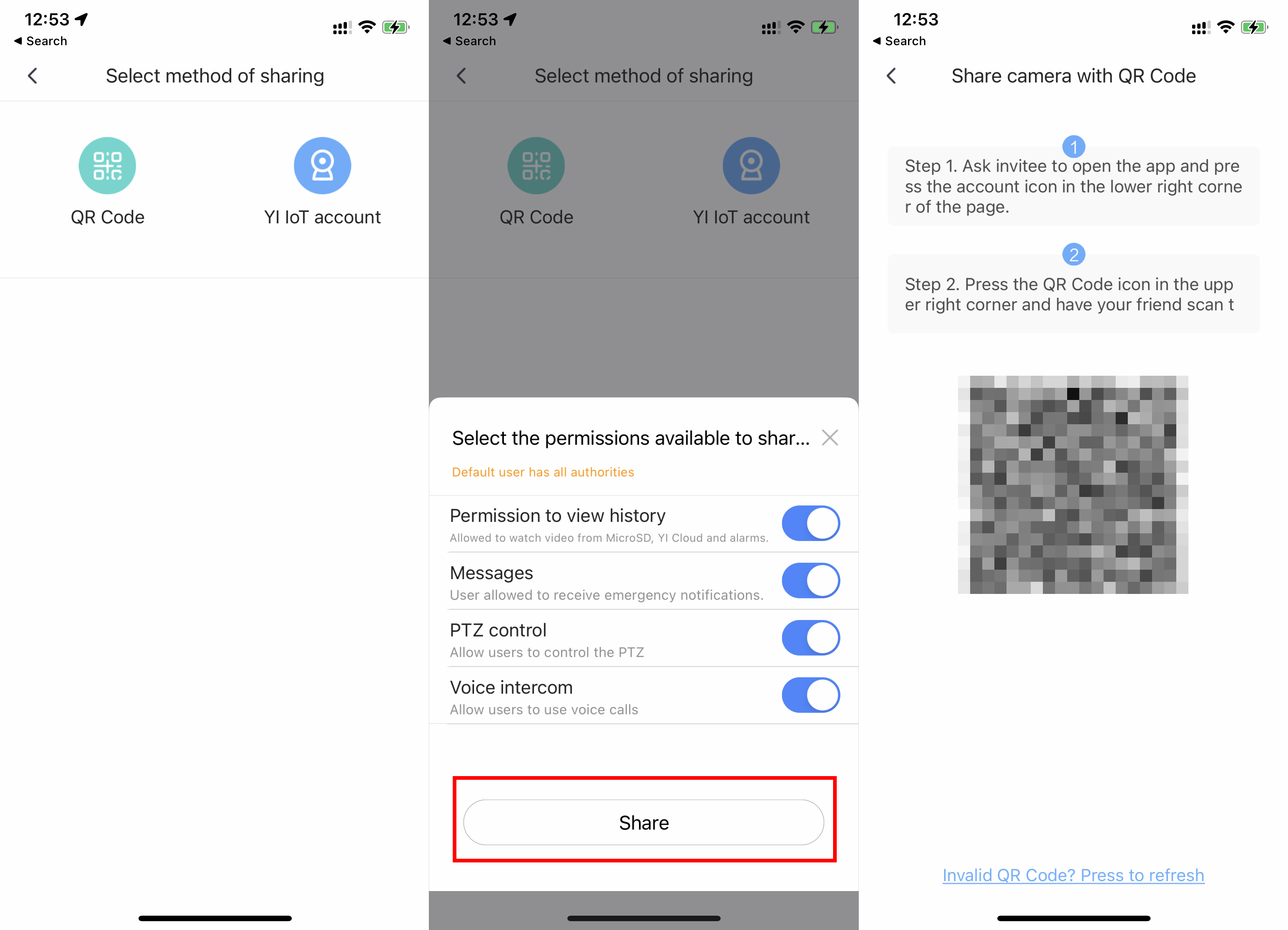

QR Code Share

1. Select QR Code, Select the permissions available to share, and then tap Share.

Share the camera QR Code - yi iot

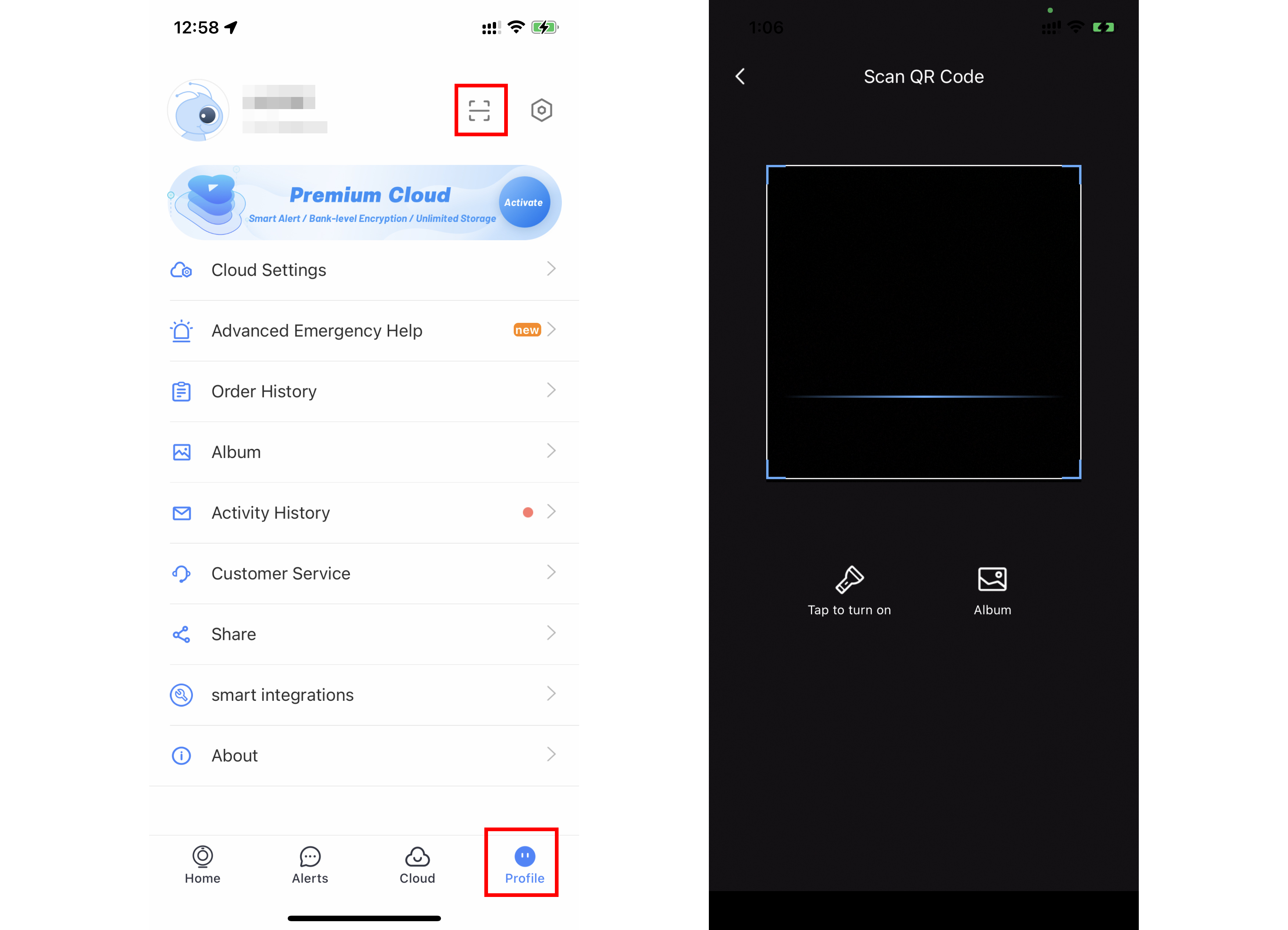

2. Ask invitee to open the app and press the account icon in the lower right corner of the page.

Press the QR Code icon in the upper right corner and have your friend scan.

QR Code Share

YI loT account Share

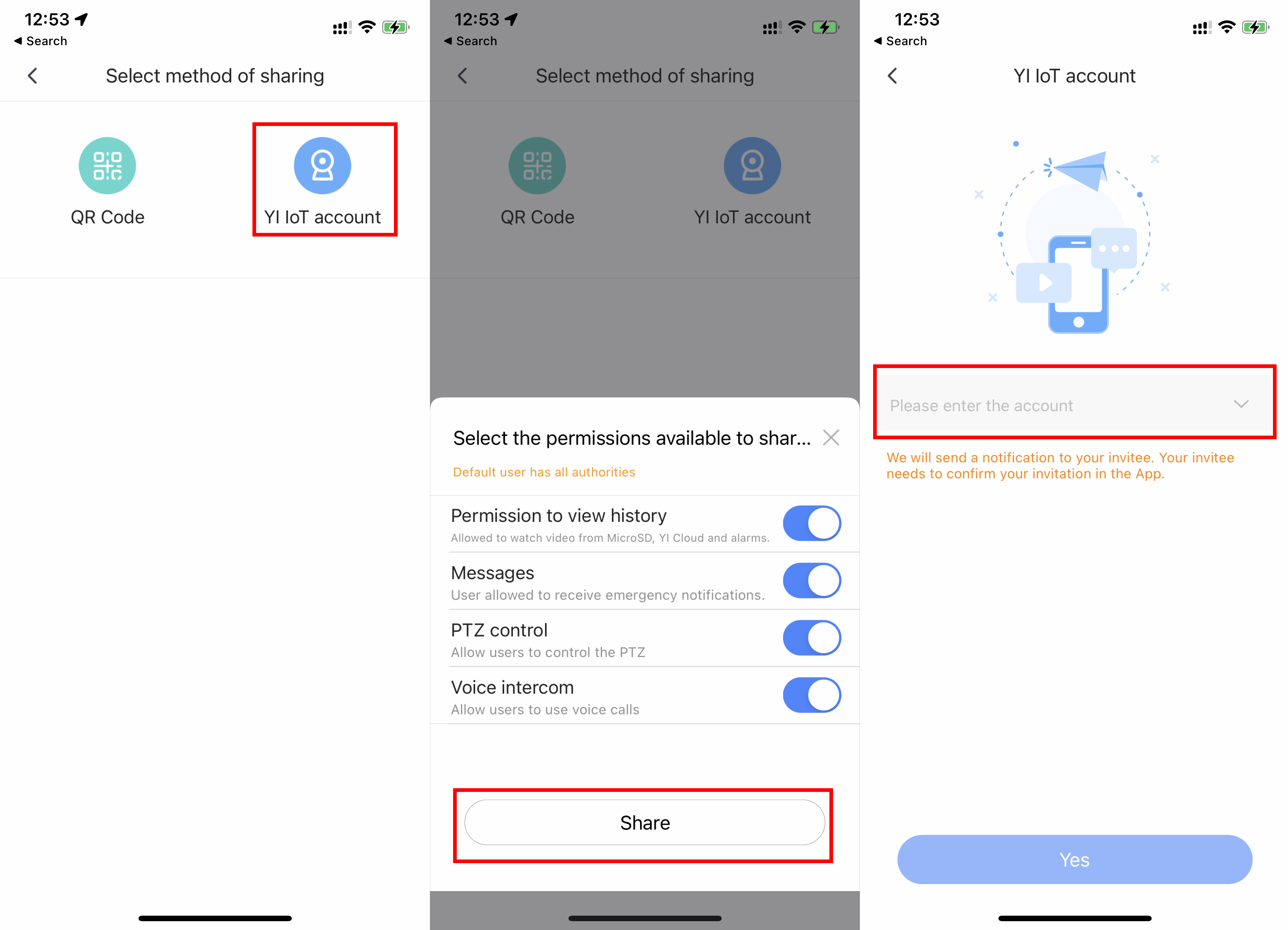

1. Select YI IoT account, select shareable permissions, enter the invitee’s YI IoT email address, and click Share.

2. YI IoT APP will send a notification to your invitee. Your invitee needs to confirm invitation in the App.

YI loT account Share

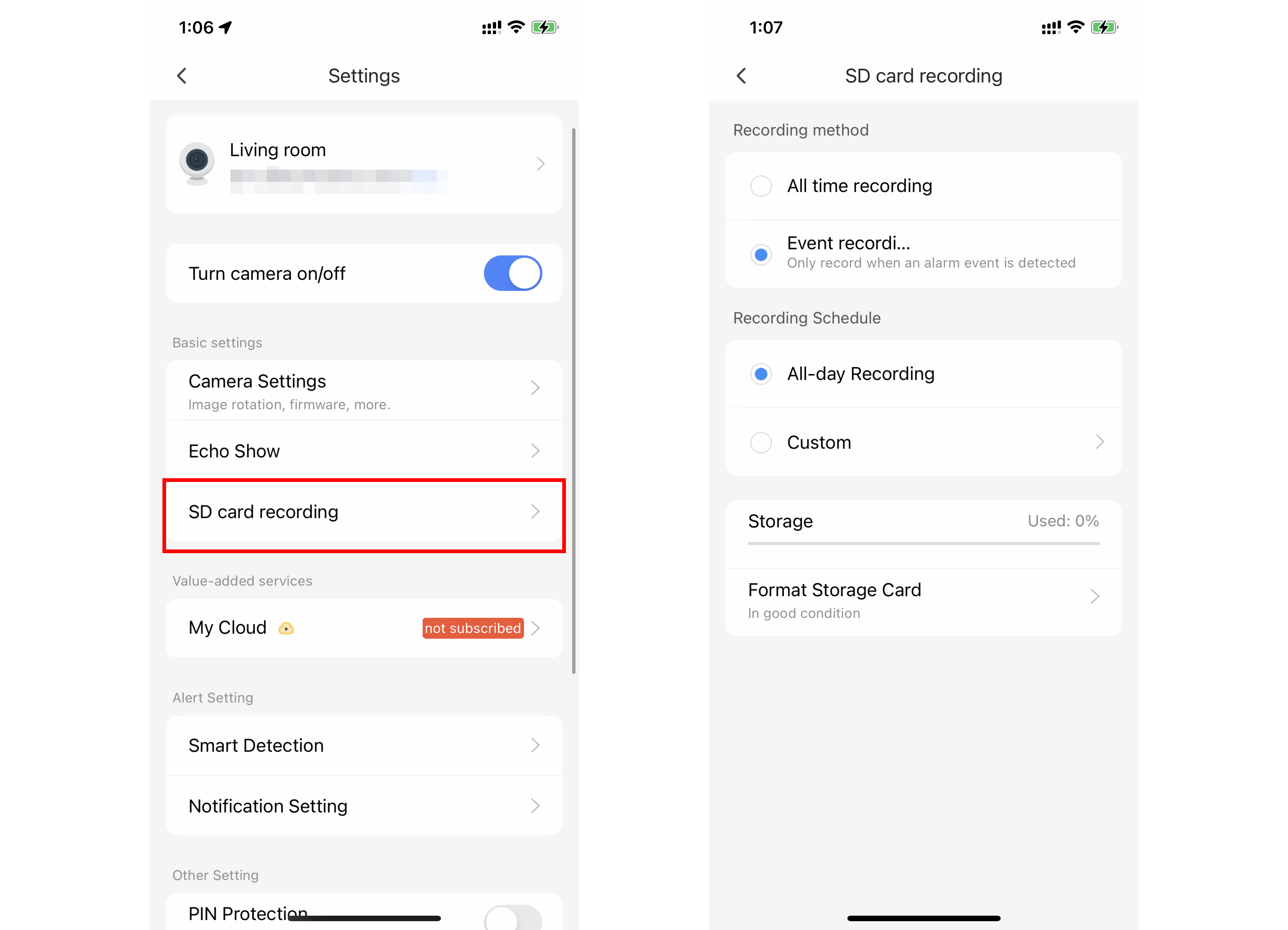

Recording Settings

The camera will only be displayed when the SD card is inserted SD card recording settings, inserting the SD card will, the camera will restart.

By default, the camera is activated with Event recordi, after activating motion detection, the camera will automatically record when it detects motion.

You can set the recording mode in SD card recording.

All time recording: The camera will record all the time and will not stop.
Event recording: Only record when an alarm event is detected

All-day Recording: 24-hour operation
Custom: You can set the time to start recording, (up to 3)

Recording Settings - yi iot

View Camera Recording

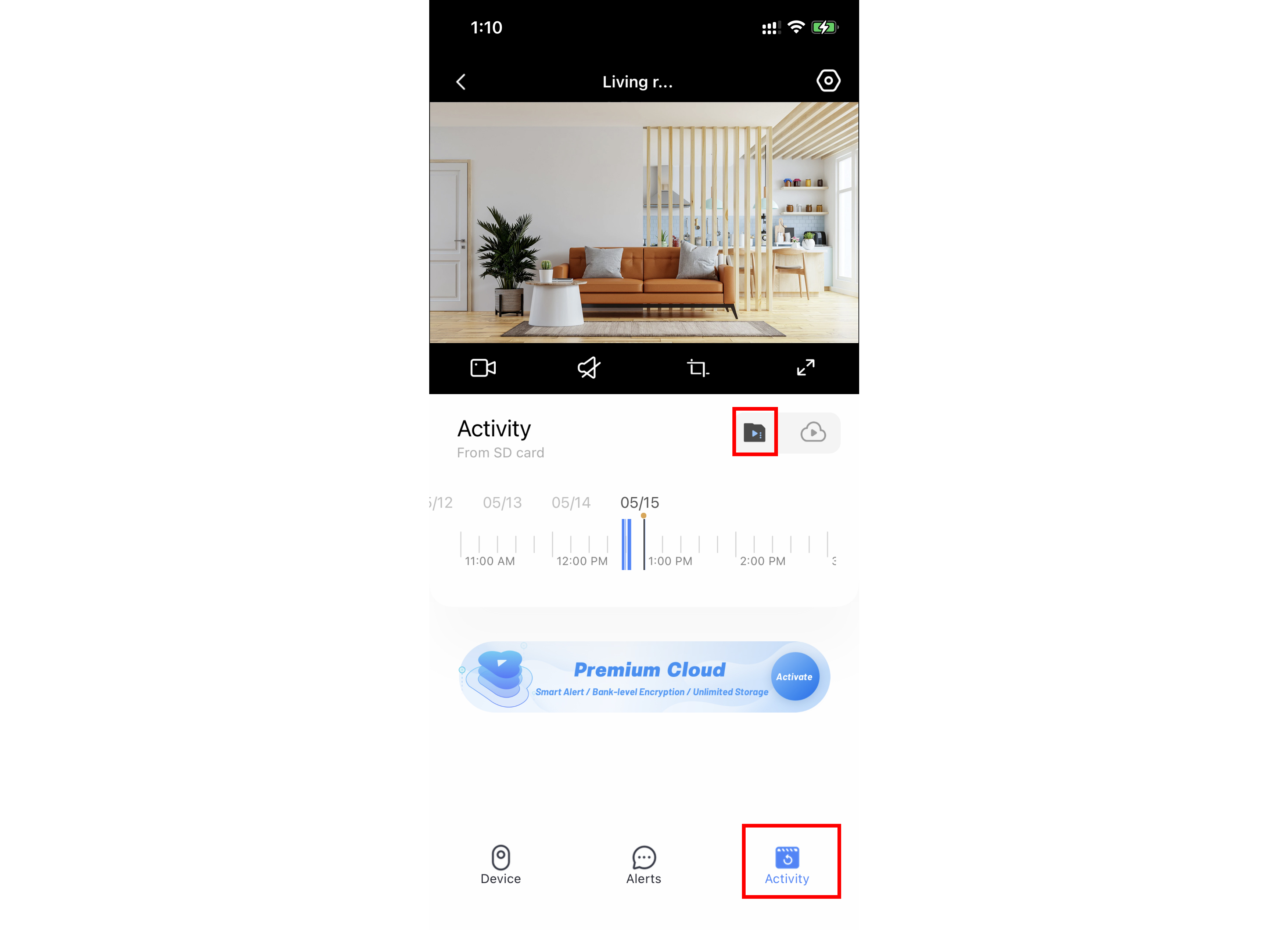

Click on the Activity to enter the interface, ‘‘ is the cloud storage video, ‘‘ is the SD card video.

The blue time indicates the time when there is video recording.

View Camera Recording - yi iot

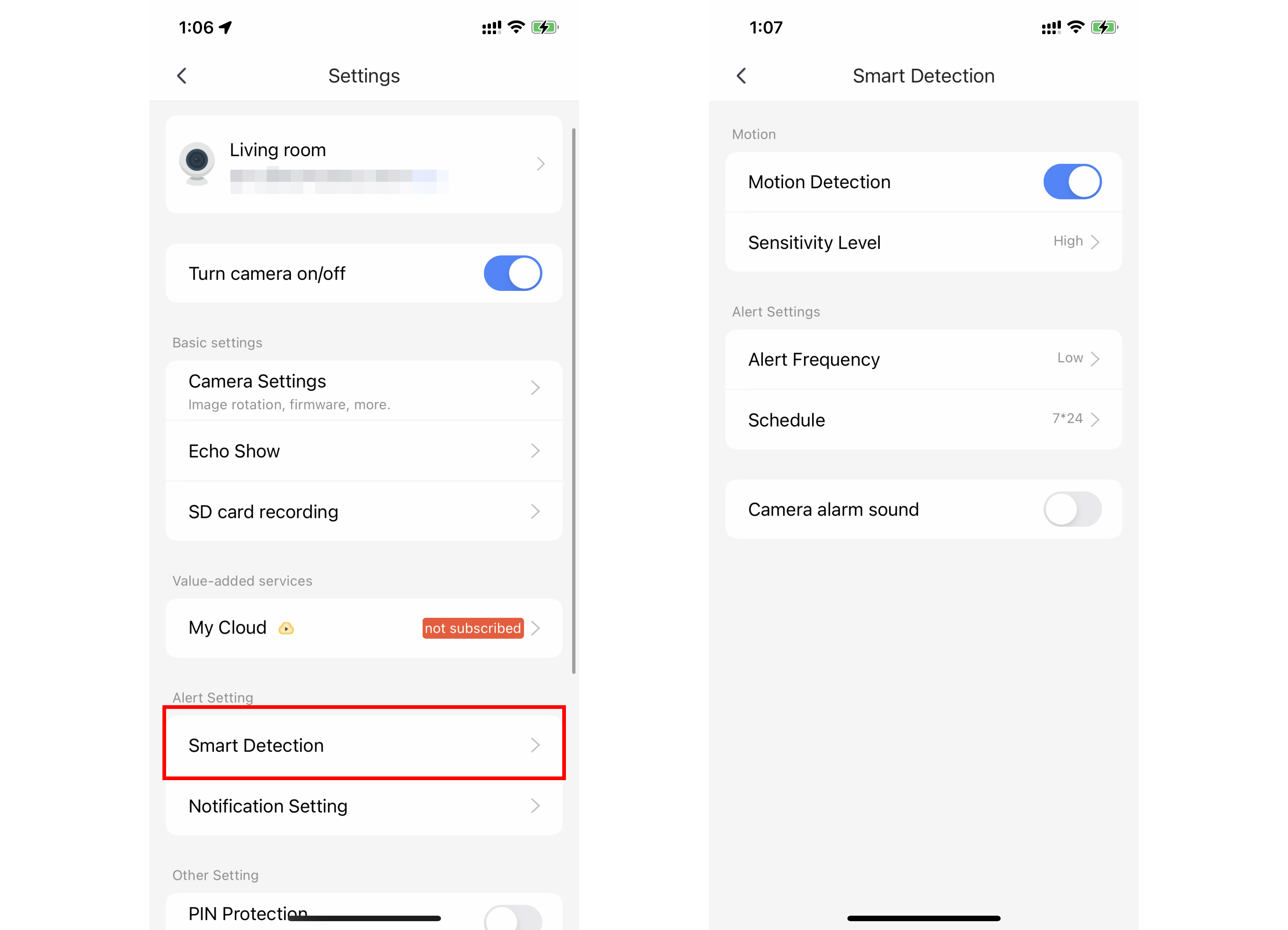

Motion Detection Settings

After turning on motion detection, the camera detects motion and the app will push an alarm notification.
The motion detection recording is set in the SD card recording.

You can set the detection sensitivity and notification frequency in Smart Detection, and you can also activate the alarm sound.

Motion Detection: Motion detection switch
Sensitivity Level – High:The camera will generate an alert and video when detecting the object slightly shaking.

Sensitivity Level – Medium:The camera will generate an alert and video when detecting the object moving at an moderate.

Sensitivity Level – LOW:The camera will generate an alert and video when detecting the object moving significantly.

Alert Frequency: Low – 10 minute,Medium – 5 minute, High – 1 minute
Schedule:
Set alarm notification working time

Camera alarm sound: When activated, the camera will sound an alarm when it detects motion.

Motion Detection Settings - yi iot

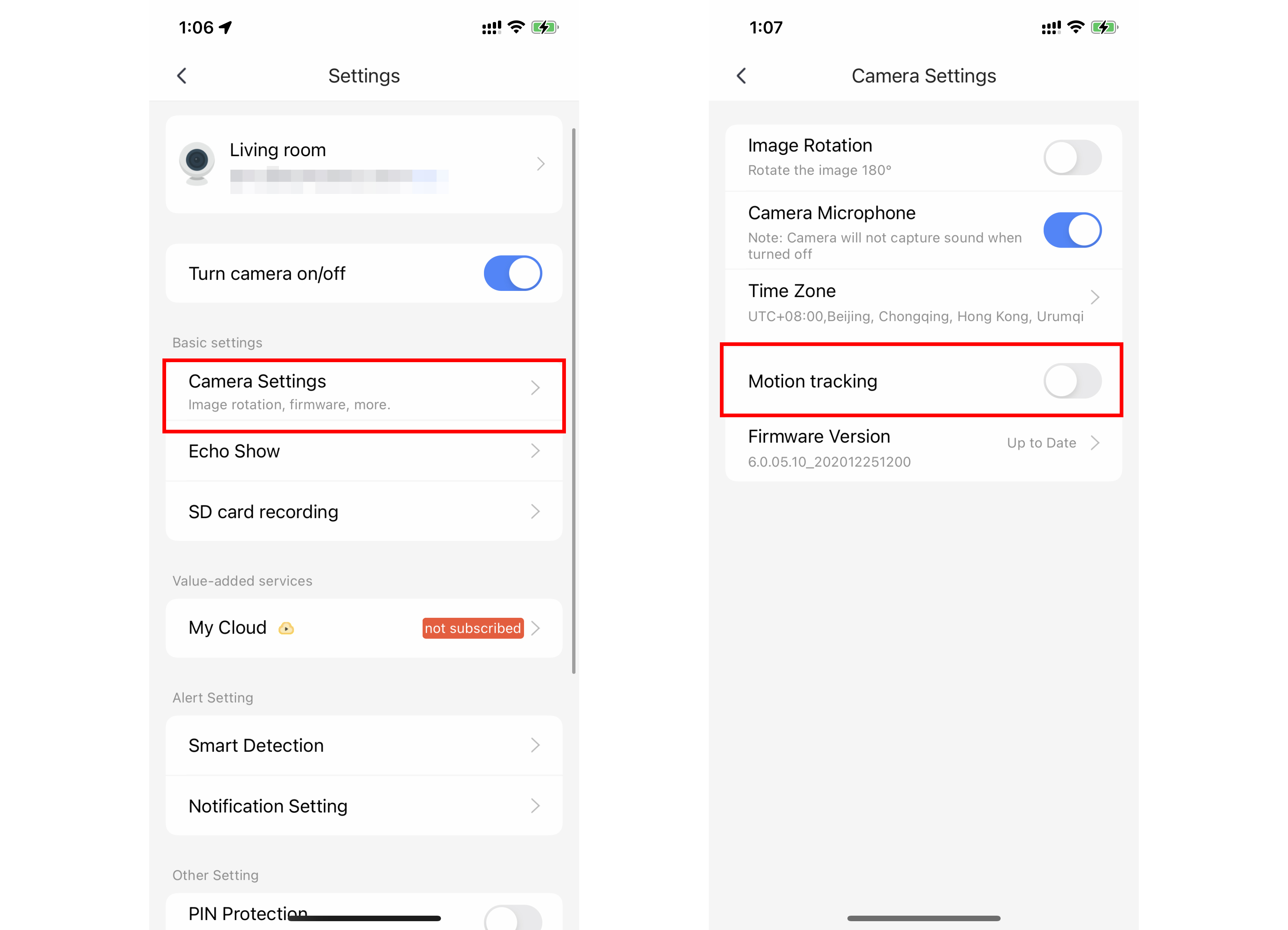

Motion tracking Settings

Motion tracking is activated in Camera Settings.
Motion tracking allows you to track moving objects, and the camera will follow the movement of the object.

See also  How To Reset YI IoT Camera? (Complete Guide)
Motion tracking Settings - yi iot

YI IoT Light bulb camera Setup

YI IoT Light bulb camera has the same function as a normal camera, the main feature is that it can be mounted on a light stand.

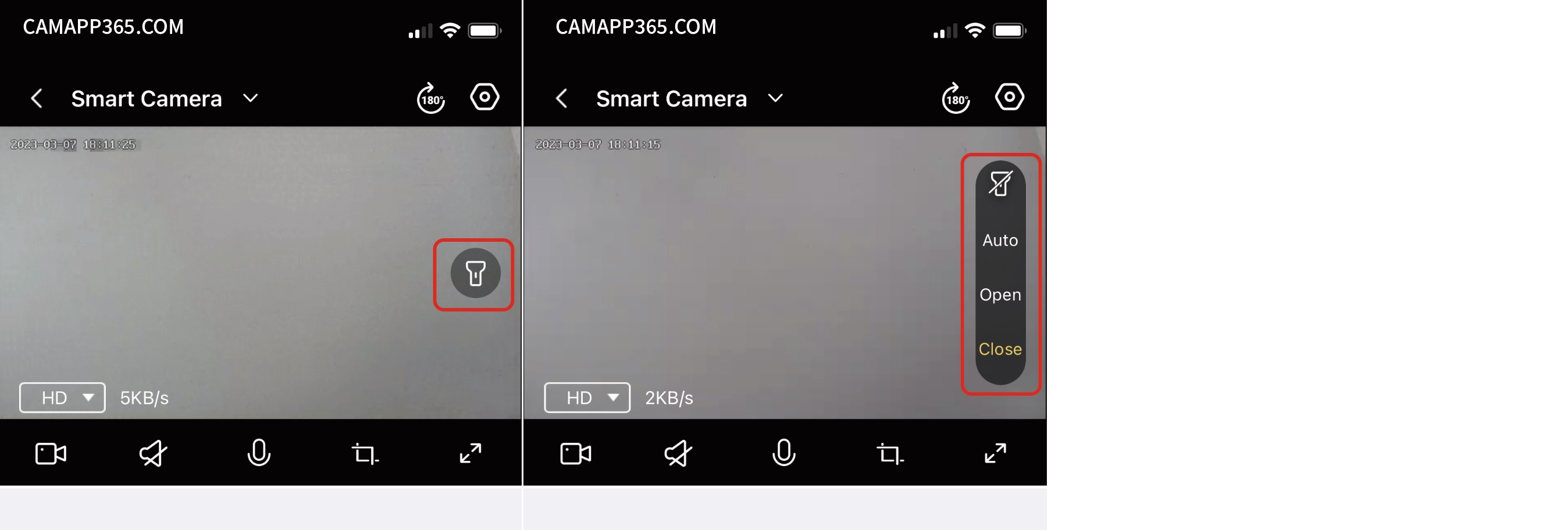

If your YI IoT camera supports Light, you can see the ‘‘ icon in the live screen. By clicking the ‘‘ icon, you can select the Light working mode.

Auto: When in night vision mode, the camera detects the movement of objects, the camera will start Light.

Manual switch: You can choose Open or Close to switch the Light manually.

YI IoT Light bulb camera Setup

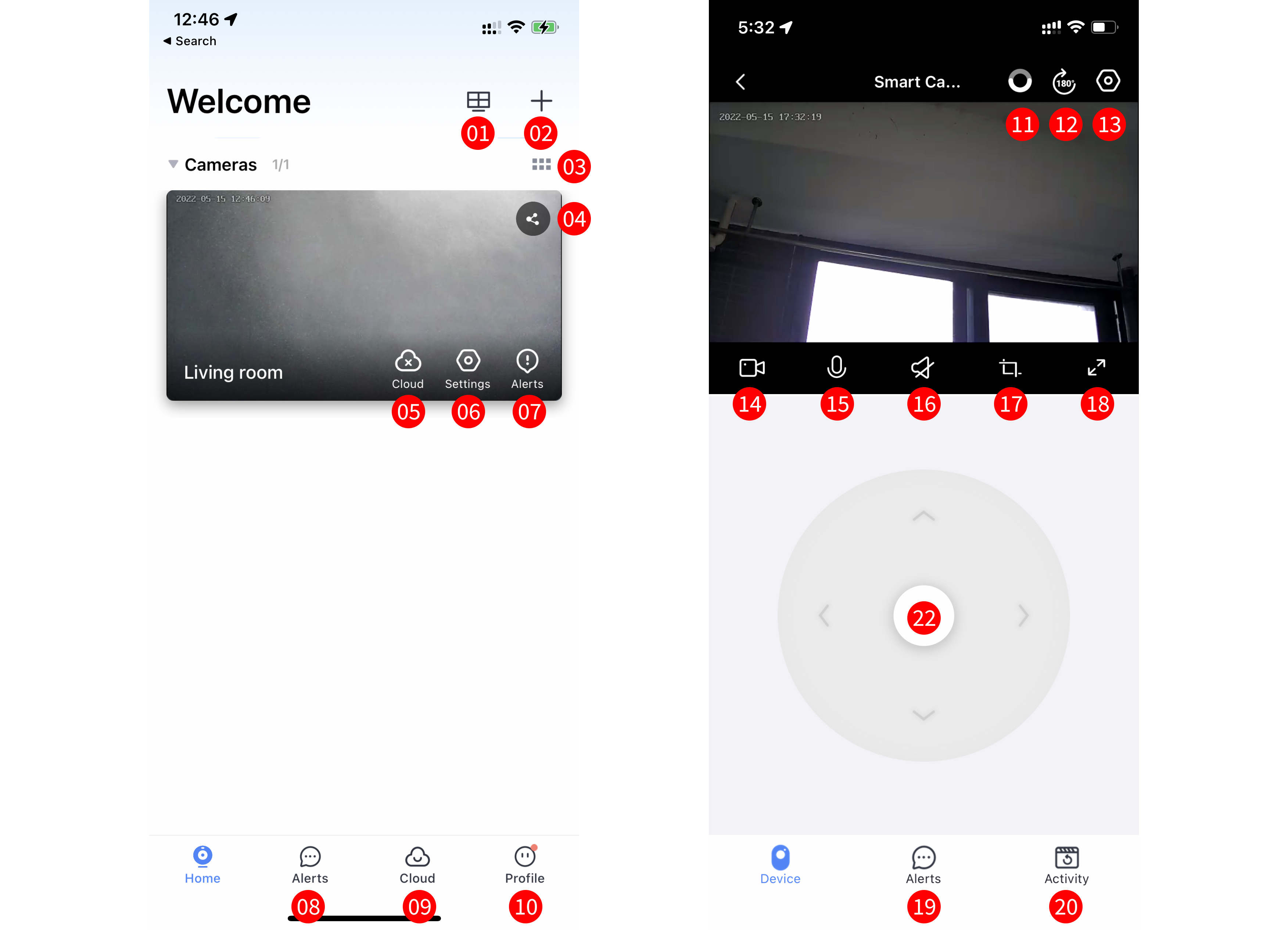

YI IoT APP Interface Description

1. Watch 4 cameras at the same time 2. Add cameras

3. switch camera display 4. Share cameras

5. Cloud storage 6. Camera settings 7. alarm information

8. alarm information 9. cloud storage

10. personal information 11.Cloud Storage

12. Flip video screen 13. camera settings

14. save the video on the phone 15. voice intercom

16. sound switch 17. Screenshot

18. Full screen zoom 19. alarm message

20. view camera video 22. Control camera movement

YI IoT Interface Description

Video Tutorials

YI IoT For PC

YI IoT supports Windows computers, and you can download the software here.

How To Add YI IoT Camera To Your Computer?

If you have added a camera to the YI IoT APP, you can use the camera on your computer by simply logging into your account.

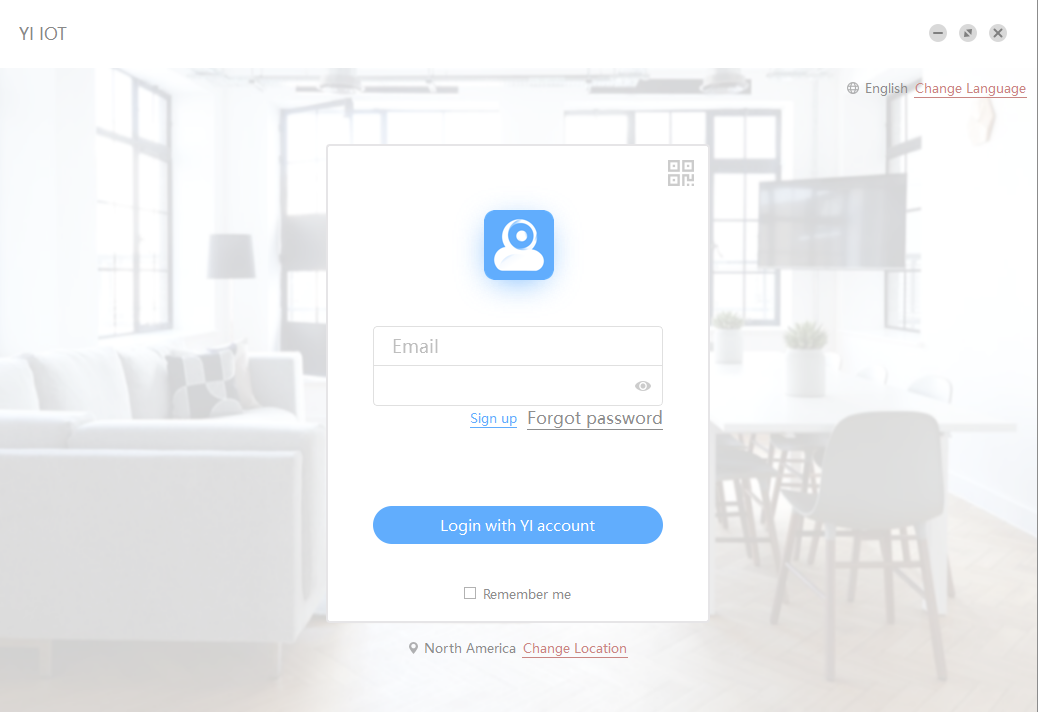

1. Login to software, no account please register first.

How To Add YI IoT Camera To Your Computer?

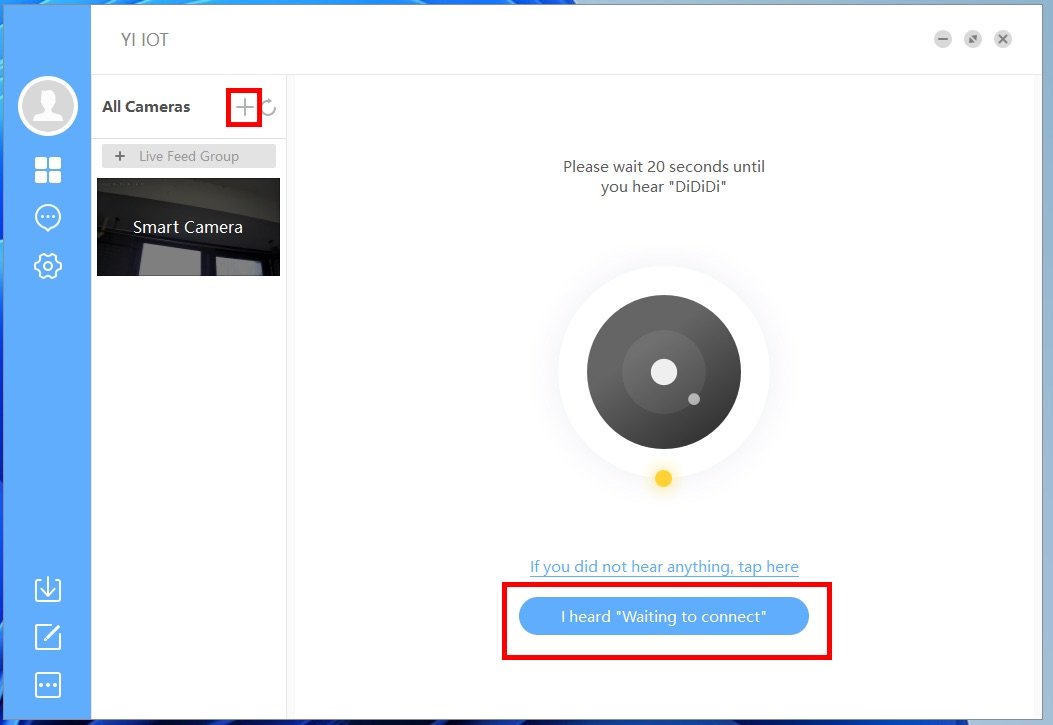

2. Click ‘+’ , make sure your camera is beeping, click ‘I heard “Waiting to connect”‘.

Note: Only when the camera beeps ‘drop-drop’, you can add the camera, no beep please reset the camera.

How To Add YI IoT Camera To Your Computer?

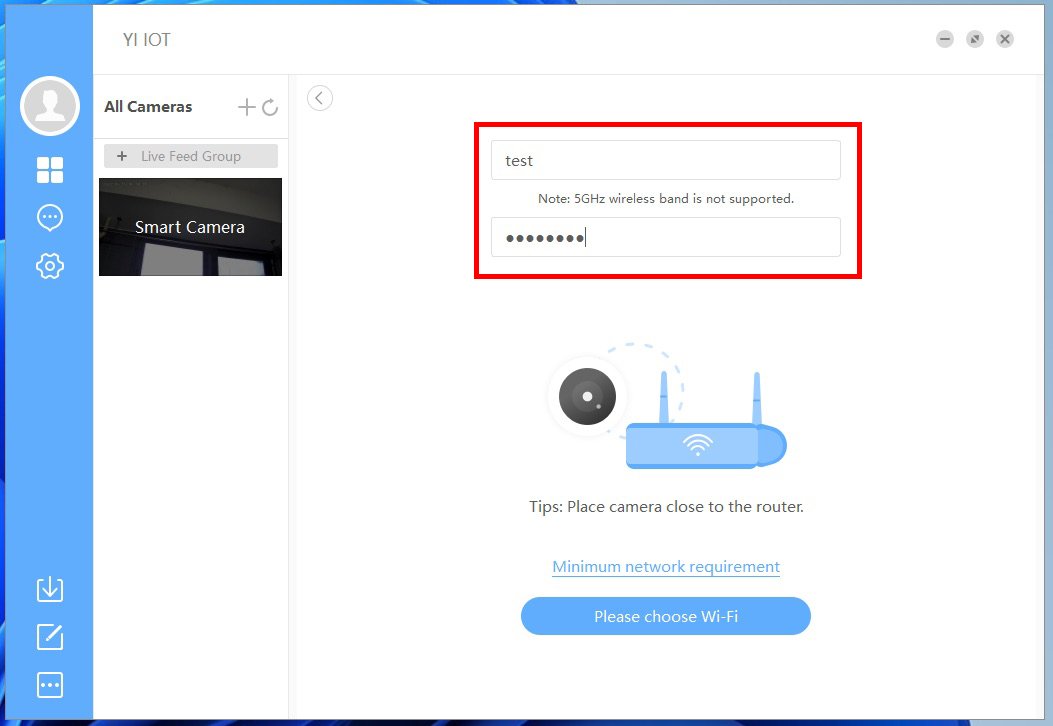

3. Enter your wifi name and password, then click Please choose Wi-Fi

Note: The name and password are case-sensitive

How To Add YI IoT Camera To Your Computer?

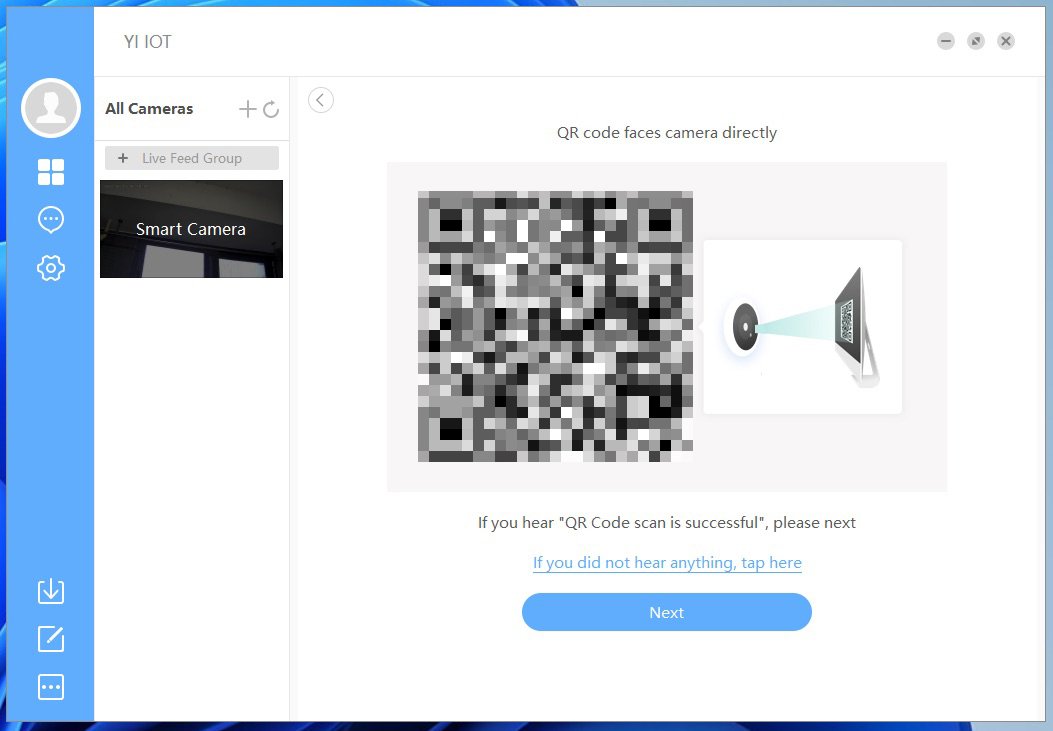

4. Let the camera scan the QR code, If you hear “QR Code scan is successful”, please click Next.

How To Add YI IoT Camera To Your Computer?

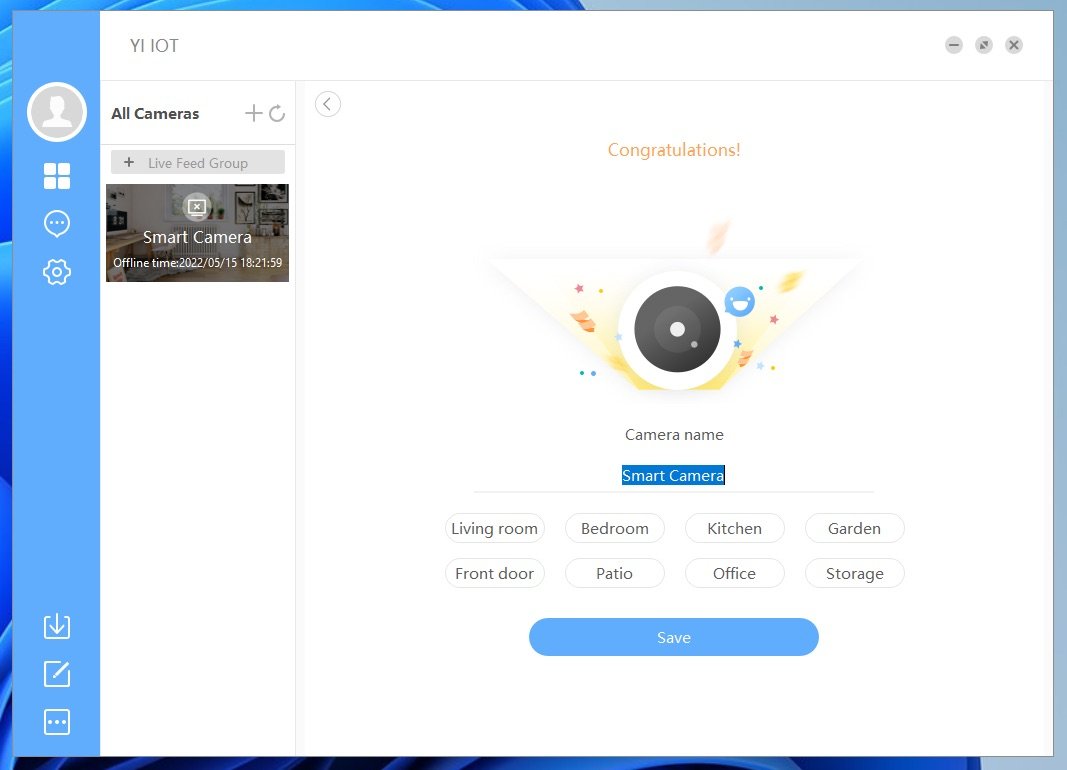

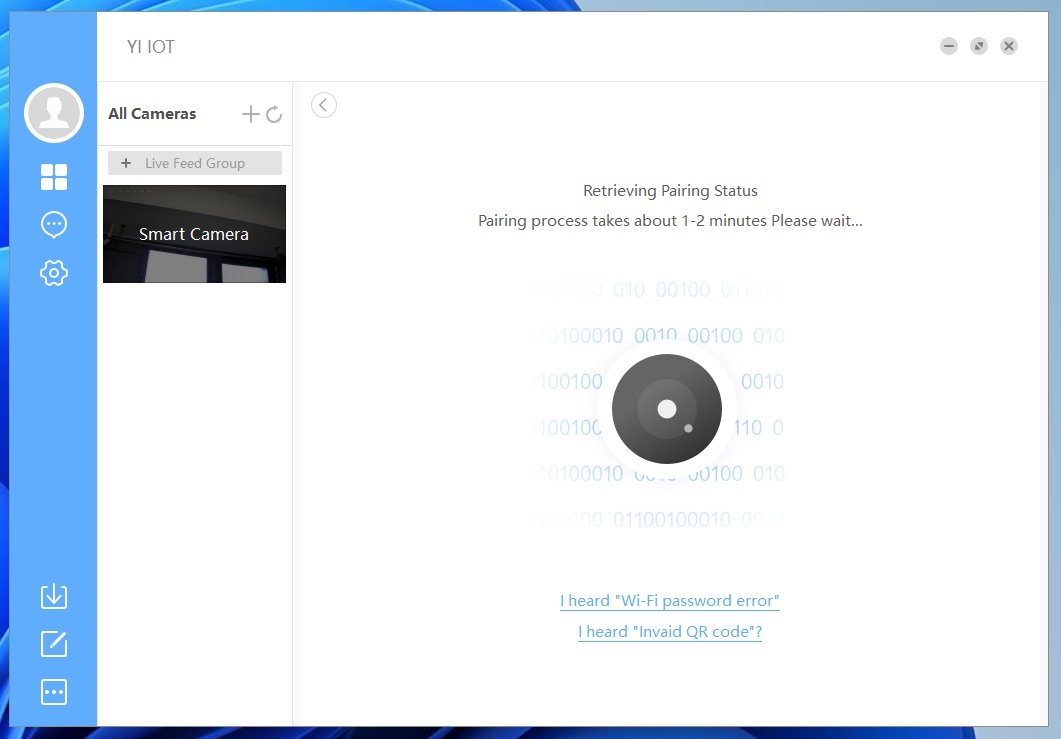

5. Wait for the camera to connect to the wifi, click Save after successful connection.

How To Add YI IoT Camera To Your Computer?
How To Add YI IoT Camera To Your Computer?

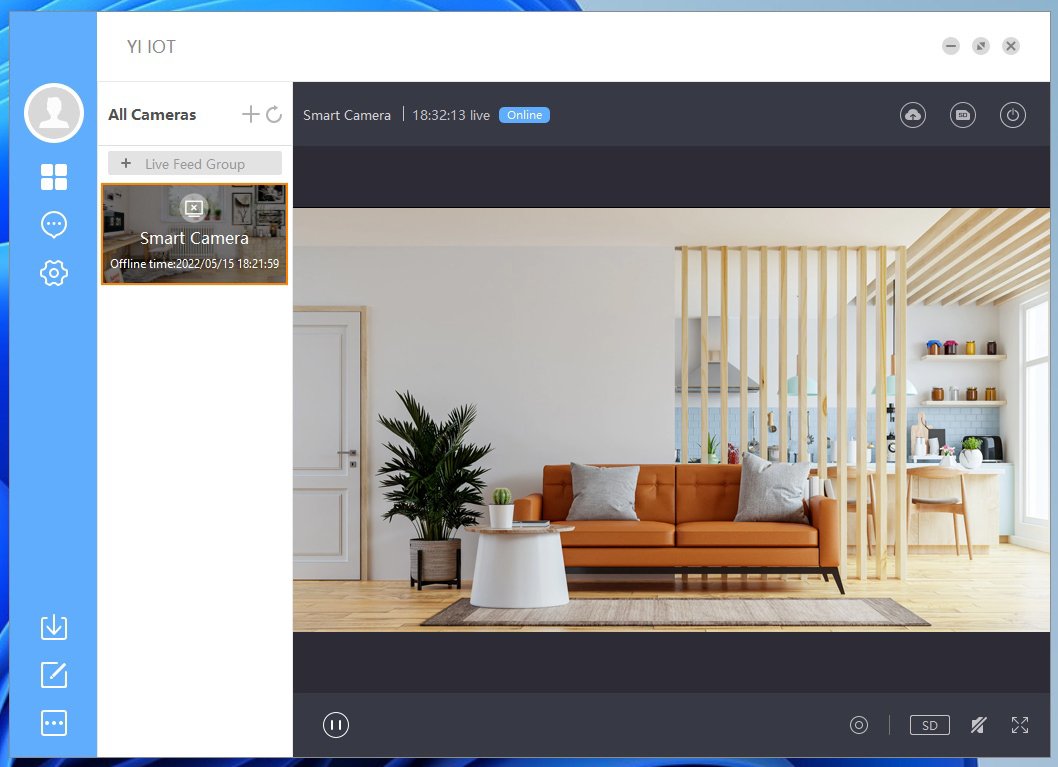

7. Double-click the camera to watch the video.

How To Add YI IoT Camera To Your Computer?

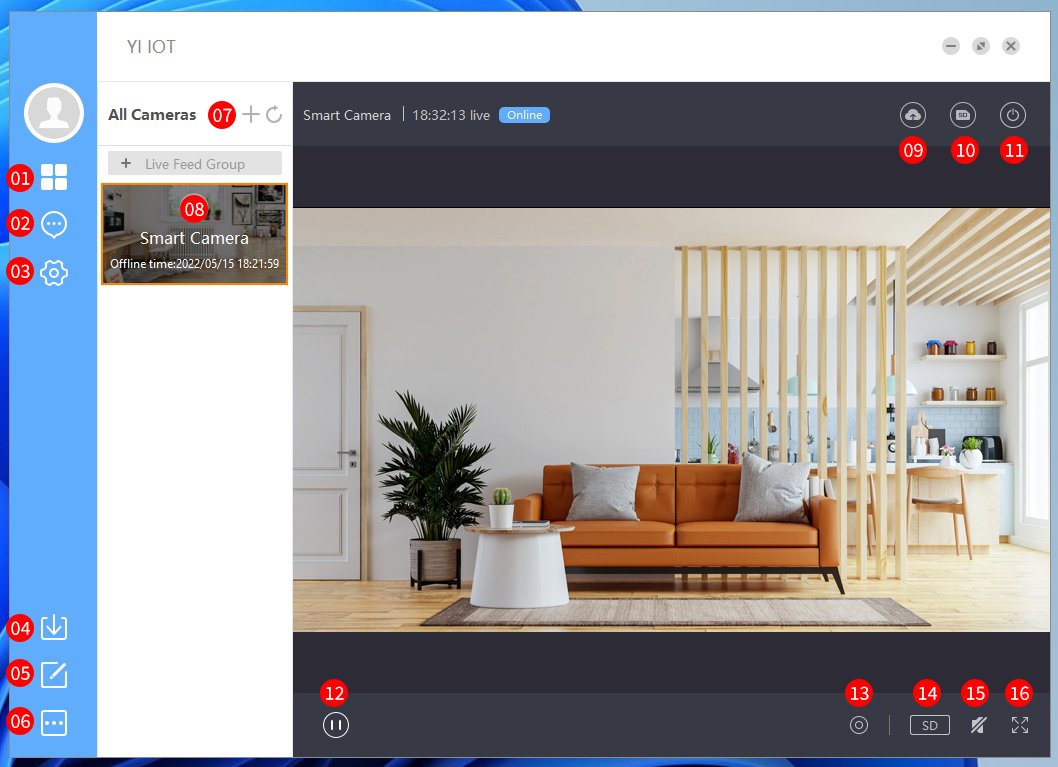

YI IoT For PC Interface Description

  1. Enlarge the video
  2. alarm message
  3. camera settings
  4. downloaded cloud storage video
  5. BUG FEEDBACK
  6. set save folder
  7. add camera
  8. camera
  9. cloud storage video
  10. memory card video
  11. camera switch
  12. Pause video
  13. control camera movement
  14. switch resolution
  15. Sound switch
  16. full-screen viewing
How To Add YI IoT Camera To Your Computer?

Why add YI IoT camera failed?

Please check the following issues, then reset the camera and add it again.

  1. Ensure camera is powered up and waiting for networking;
  2. Ensure camera has successfully identified the QR code and heard “QR code scanned successfully”,
  3. Ensure Wi-Fi name and password are correct;
  4. Try to restart the router or modem and make sure the camera is as close to the router as possible;
  5. Check if Wi-Fi is 2.4G (some cameras support 5G)

I heard “wifi connection failed” or “wifi password error”

Weak WiFi signal, please move device or cell phone closer to WiFi router, or try rebooting WiFi router.
Make sure the wifi password is correct

I heard “Pairing has timed out”

Reset the camera and then re-add it.

What to do if I did not hear “QR Code scan is successful”?

  1. The plastic cover on the new camera has to be removed and make sure that the lens on an old camera is clean.
  2. The QR code cannot be read if the display resolution of your mobile phone is too low, too dark or it is too far from the camera lens.
  3. please reset your camera.

How to reset YI IoT camera?

The camera can be reset only after the camera is started, Press and hold the reset button for 5 seconds.

Reset the sound of the YI IoT camera

Can YI IoT Camera connect to YI Home or Kami Home APP?

No, YI IoT can only connect to YI IoT camera.

See also  How to connect YI IoT camera to Alexa and Google Home?

Why some YI IoT camera features I don’t have?

  1. YI IoT camera and APP will be updated all the time, you may be using the old version.
  2. Different models of YI IoT camera may have some differences
  3. It is recommended to contact your camera seller

YI IOT CAMERA FAQ

Why do YI IoT cameras offline?

YI IoT camera keeps going offline, usually because it can’t connect to wifi.

1. wifi signal is weak, put the YI IoT camera close to the router
2. restart YI IoT camera, the camera will reconnect to wifi
3. Reset the camera and reconnect the YI IoT camera
4. Still keep offline, maybe the wifi module of YI IoT camera is faulty, we suggest contacting your camera seller

Why are YI IoT cameras often offline?

YI IoT cameras are often offline, usually for the following reasons

1. The wifi signal of the location where you put the YI IoT camera is too weak, you can strengthen your wifi signal or put the camera close to the router.
2. Memory card problems cause YI IoT camera offline, you can take out the memory card, and then see if the camera can work properly.
3. The above attempts are not working properly, it is possible that the wifi module of YI IoT camera is faulty, we suggest contacting your camera seller

Why can’t I control the YI IoT camera pan and tilt?

Please make sure your YI IoT camera supports pan and tilt
If you can’t respond to the control button, or can only control part of the pan and tilt, it means the camera is malfunctioning internally, please contact your camera seller

Why do YI IoT cameras often restart automatically?

The automatic reboot may be a problem with the power supply, power cable and memory card.
You can replace them in order to troubleshoot the problem, if it cannot be solved, then it may be a YI IoT camera hardware problem, please contact your camera seller.

I can’t find YI IoT APP in app store and google play?

YI IoT APP was deleted from app store and google play, you need to wait for YI IoT APP to be re-listed.

How can I connect the camera when the QR code on the YI IoT camera is damaged?

The two-dimensional code is not required, you can manually select the mode to connect the YI IoT camera.

Why does the YI IoT camera move in the opposite direction when tracking?

You need to contact your YI IoT camera seller in order to resolve this issue.

1. Ask for a replacement camera
2. You can solve the problem by upgrading the camera firmware, contact your camera seller to push the firmware.

How to solve the glass will reflect the night vision?

YI IoT camera can’t turn off the night vision light manually, so it can’t be solved, please keep the camera away from windows, glass, etc.

Forgot the PIN password of YI IoT camera

PIN password is set by the user,there is no way to retrieve PIN password.
If you forget the password, you can only reset the camera and reconnect the YI IoT camera.
Note: After resetting the camera, you can’t view the previous VIDEO.

What sd card does YI IoT camera support?

YI IoT camera supports Micro SD Card, minimum 8GB, class10 memory card.
We recommend using a SanDisk or Samsung Micro SD Card.

How do I return it?

Please contact your camera seller, camapp365.com does not sell cameras and is not a YI IoT person

Can camapp365.com solve my problem?

There are too many comments for me to reply to every question, but I will check and update the FAQ uniformly.

More FAQ & Troubleshooting

Update history

  • 23/03/06 Updated Light function description
  • 23/02/24 Added FAQ
Previous Post

Amcrest ProHD Security Camera Review And Common Problem

Next Post

4 Best Hidden Mini Cameras

Related Posts

YI IoT Camera

YI IoT Light Bulb Camera

YI IoT Light Bulb Camera Review and SetUp

yi iot

How To Reset YI IoT Camera? (Complete Guide)

How to connect YI IoT camera to Alexa and Google Home?

How to connect YI IoT camera to Alexa and Google Home?

Why is my YI IoT camera offline?

Why is my YI IoT camera offline and how do I fix it?

YI IoT Camera Frequently Asked Questions

YI IoT Camera Common problems and fixes

Comments 214

  1. Davidsam says:
    46 minutes ago

    ¿Quieres promocódigos recientes de 1xBet? En este sitio descubrirás las mejores ofertas para apostar .
    El promocódigo 1x_12121 garantiza a un bono de 6500 rublos al registrarte .
    Además , utiliza 1XRUN200 y disfruta una oferta exclusiva de €1500 + 150 giros gratis.
    https://riverwhra86308.full-design.com/descubre-cómo-usar-el-código-promocional-1xbet-para-apostar-free-of-charge-en-argentina-méxico-chile-y-más-77755443
    No te pierdas las ofertas diarias para conseguir recompensas adicionales .
    Todos los códigos funcionan al 100% para esta semana.
    No esperes y maximiza tus oportunidades con la casa de apuestas líder !

    Reply
  2. rejekibet says:
    8 hours ago

    Great guide! The step-by-step instructions made it so easy to set up my YI IoT Camera. I especially appreciated the troubleshooting tips – they saved me so much time. Thanks for putting this together!

    Reply
  3. Robertkak says:
    11 hours ago

    Audemars Piguet’s Royal Oak 15450ST boasts a
    9.8mm thick case and 50-meter water resistance, blending luxury craftsmanship

    Its sophisticated grey dial includes luminescent hour markers and a glareproofed sapphire crystal, ensuring legibility and resilience.
    Powered by the caliber 3120 movement, it offers a 60-hour power reserve for uninterrupted precision.
    Introduced in the early 2010s, the 15450ST complements the larger 41mm 15400 model, catering to slimmer wrists.
    The recent 2019 iteration highlights meticulous craftsmanship, appealing to collectors.

    AP 15450
    A sleek silver index dial with Grande Tapisserie accented with glowing indices for effortless legibility.
    A seamless steel link bracelet combines elegance with resilience, secured by a hidden clasp.
    Renowned for its iconic design, it continues to captivate collectors for those seeking understated prestige.

    Reply
  4. 11 Winner says:
    14 hours ago

    This guide was incredibly helpful! I was able to set up my YI IoT Camera in no time. The step-by-step instructions made everything clear, especially for someone who isn’t very tech-savvy. Thanks for putting this together!

    Reply
  5. PkrVip says:
    5 days ago

    This guide is incredibly helpful! I just set up my YI IoT camera using your instructions, and everything worked perfectly. Thanks for the detailed steps and troubleshooting tips!

    Reply
  6. DonaldDew says:
    1 week ago

    Crafted watches stay in demand for many compelling factors.
    Their craftsmanship and tradition set them apart.
    They symbolize status and success while mixing purpose and aesthetics.
    Unlike digital gadgets, their value grows over time due to rarity and durability.
    https://telegra.ph/Richard-Mille-Revolyuciya-v-mire-vremeni-03-04
    Collectors and enthusiasts treasure the engineering marvels that no smartwatch can replicate.
    For many, collecting them defines passion that transcends trends.

    Reply
  7. play slot says:
    2 weeks ago

    This website, you can discover a great variety of casino slots from top providers.
    Users can try out traditional machines as well as modern video slots with high-quality visuals and bonus rounds.
    If you’re just starting out or a seasoned gamer, there’s something for everyone.
    money casino
    Each title are available anytime and designed for laptops and mobile devices alike.
    All games run in your browser, so you can jump into the action right away.
    Platform layout is easy to use, making it convenient to explore new games.
    Register now, and dive into the thrill of casino games!

    Reply
  8. casino games says:
    2 weeks ago

    This website, you can access lots of slot machines from leading developers.
    Visitors can experience traditional machines as well as new-generation slots with high-quality visuals and bonus rounds.
    Whether you’re a beginner or a seasoned gamer, there’s something for everyone.
    sweet bonanza
    Each title are ready to play round the clock and designed for laptops and tablets alike.
    You don’t need to install anything, so you can start playing instantly.
    The interface is user-friendly, making it quick to explore new games.
    Register now, and discover the world of online slots!

    Reply
Next

Leave a Reply Cancel reply

Your email address will not be published. Required fields are marked *

Search

Camera APP

Best Micro SD Card for Security camera

We think the Samsung Pro Endurance is the best choice, designed for use in security cameras to help keep your video files safe, incredibly durable, and backed by a 3-year warranty.

1. Top pick : Samsung Pro Endurance(128GB )

2. Budget pick: Sandisk High Endurance U3(64GB )

3. High Capacity Pick: Sandisk Ultra A1(128GB)

Doorbell

Without Subscription Doorbell

Camapp365 is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to Amazon.com.

  • About
  • Privacy & Policy
  • contact us
Have a question about your camera? Post it in the comments! Someone will probably reply to your question.

© 2019-2023 camapp365

No Result
View All Result
  • HOME
  • Technical
  • Camera Type
    • Doorbell
  • Reviews
  • CEASE SERVICE
  • contact us

© 2019-2023 camapp365
